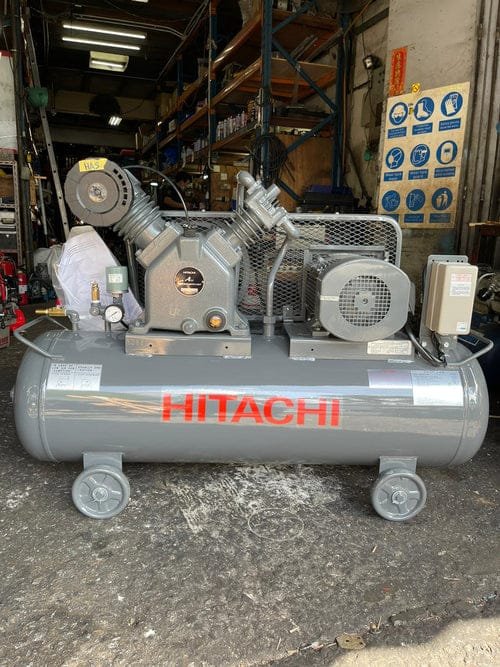

Hitachi Air Compressor 5HP 125L 415V with Pressure Switch

HITACHI 5HP 125L 415V AIR COMPRESSOR with horizontal tank and pressure switch model : 3.7P-9.5V5A

Hitachi Air Compressor Specifications :

Motor Output (kW) : 3.7 Maximum Pressure (MPa) : 0.93 Cylinder Diameter mm X Stroke mm X Number of Cylinders : L)90x85x1  H)50x85x1 Compressor Speed min-1 : 1000 Displacement L/min : 541 Capacity at Maximum Pressure L/min : 440 Air tank Capacity (L) : 125 (170) Power Source (PH) : 3PH Standard Accessories : Pressure gauge , Safety valve , Hose joint , V-belt , Belt cover , Silencer , Stop valve.       Air out let 1/4BX1 for 0.75 & 1.5 kW, 1/4BX2 for 2.2 kW, 1/4BX1 & 3/8BX1 for 3.7 & 5.5 kW 1/4BX1 & 3/4BX1 for 7.5 & 11 kW 1BX1 for 15 kW External Dimensions Width x Depth x Height (mm) : 1345x428x923(1775x403x808) Weight (Kg) : 158(174) Noise Level (dB(A)) : 74
