Eaton HPLN-25L-C3-W 190W Including Trunnion Mount High Bay
Eaton HPLN-25L-C3-W 190W Including Trunnion Mount High Bay
SKU:HPLN-25L-C3-W
Couldn't load pickup availability
Share
190W LED high bay Product Details

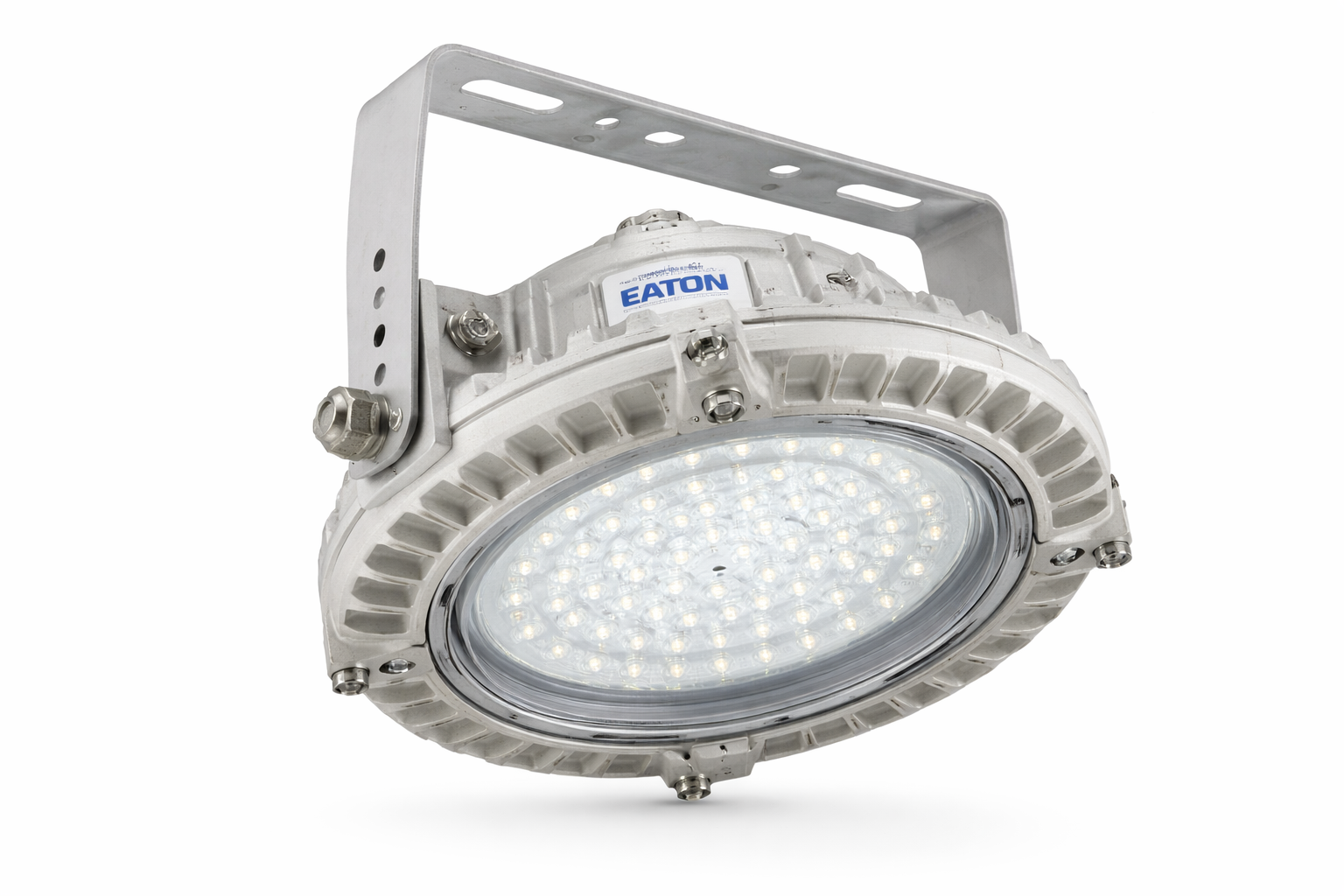

The Eaton HPLN-25L-C3-W LED High Bay is a rugged, high-performance hazardous area lighting solution from the Crouse-Hinds series. Designed for Zone 1 & Zone 2 explosive environments, this 190W luminaire delivers powerful illumination with 5700K cool white output and wide beam distribution.
Engineered with a compact, corrosion-resistant aluminum body and tempered glass lens, it ensures durability and long service life in harsh industrial conditions. The included trunnion mount allows flexible installation for ceiling or angled positioning, making it ideal for demanding industrial setups.
This high bay is widely used in oil & gas, petrochemical, offshore, and heavy industrial facilities, where safety and reliability are critical.
Product Type
Type: Explosion-Proof LED High Bay Light (Hazardous Area)
✔ Zone 1 & Zone 2 certified lighting
✔ Industrial high bay luminaire
✔ Suitable for explosive atmospheres
190W LED high bay Key Features
- 190W high-output LED high bay
- 5700K cool white light for maximum visibility
- Explosion-proof (Zone 1 & Zone 2 certified)
- IP66 rated – dust & water resistant
- High efficiency up to ~130 lm/W
- Wide beam angle (120° typical)
- Corrosion-resistant copper-free aluminum housing
- Includes trunnion mounting bracket
- Operates in extreme temperatures (-40°C to +55°C)
- Long life, maintenance-free operation
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Eaton (Crouse-Hinds Series) |
| Model | HPLN-25L-C3-W |
| Power | 190W |
| Luminous Flux | ~24,000 lm |
| Efficacy | Up to 130 lm/W |
| Color Temperature | 5700K |
| Beam Angle | 120° (Wide) |
| Voltage | 100–240V AC |
| IP Rating | IP66 |
| Protection | ATEX / IECEx (Zone 1 & 2) |
| Mounting | Trunnion Mount |
| Material | Copper-free aluminum |
| Lens | Tempered glass |
| Operating Temp | -40°C to +55°C |
| Application Height | 8–40 ft mounting height |
Applications
- Oil & gas refineries
- Offshore platforms
- Petrochemical plants
- Chemical processing units
- Mining & heavy industries
- Hazardous industrial zones
📌 Designed specifically for environments with flammable gases or vapors.
Benefits
- Safe operation in explosive environments
- High lumen output for large industrial spaces
- Corrosion & vibration resistant design
- Weatherproof for outdoor use (IP66)
- Flexible installation with trunnion mount
- Long lifespan reduces maintenance costs
Quick Understanding
- Type → Explosion-proof high bay
- Use → Hazardous areas (Zone 1/2)
- Power → 190W industrial lighting
