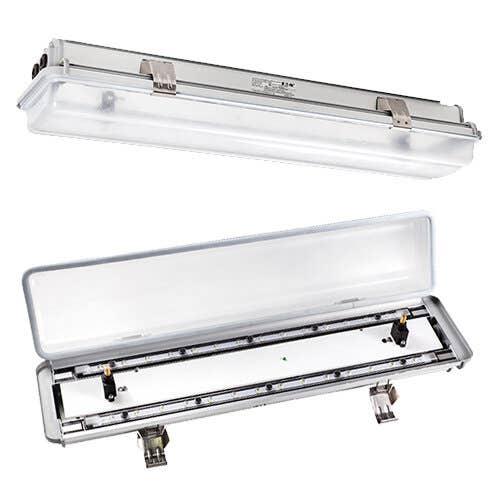

Eaton HLL LED Hazardous Area Linear Light Fixtures EMERG,LED,FTG,1END,2X14W,2FT

CCL1622429 + HLL-2-3L-D-EM1-1/6-220-R - EMERG,LED,FTG,1END,2X14W,2FT.

Leadtime: 14 To 16 Weeks

Certifications and Compliances

• IEC/EN standards
• EC-Type Examination Certificate: SEV 20 ATEX0379X
• IECEx Certificate of Conformity: IECEx NEP 19.0003X
• Marking accd to 2014/34/EU: Ex II 2 G Ex db eb ib mb IIC T6 Gb or Ex II 2 G Ex eb ib mb IIC T6 Gb
• Marking accd to IECEx: Ex db eb ib mb IIC T6 Gb, Ex tb IIIC T80℃ Db IP66
• Degree of protection accd. to IEC/EN60529: IP66

Design Features

• Suitable for Zone 1, 2, 21 and 22 hazardous areas
• Rated life of LED module: L70 = 110,000 hours at ta=25°C
• Ex-e technology for easy maintenance
• Highest temperature class T6
• Copper-free aluminum housing for excellent corrosion resistance and heat transfer properties
• IP66 rating
• Operating ambient temperature: -40°C up to +55°C

Standard Materials

• Housing – copper-free aluminum
• Lens – polycarbonate
