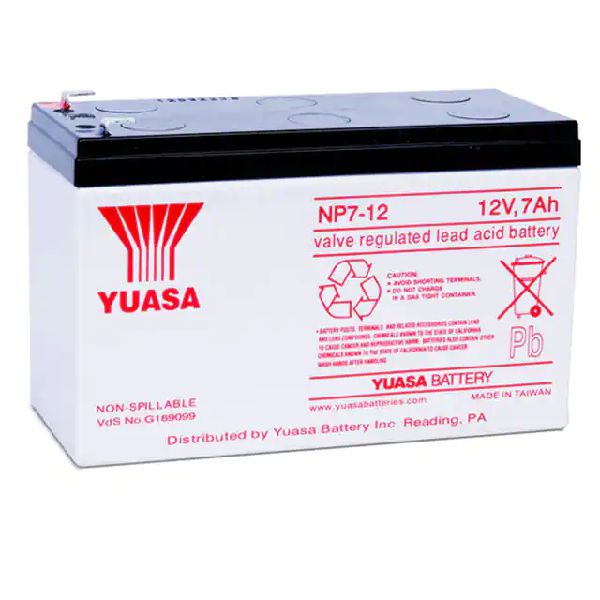

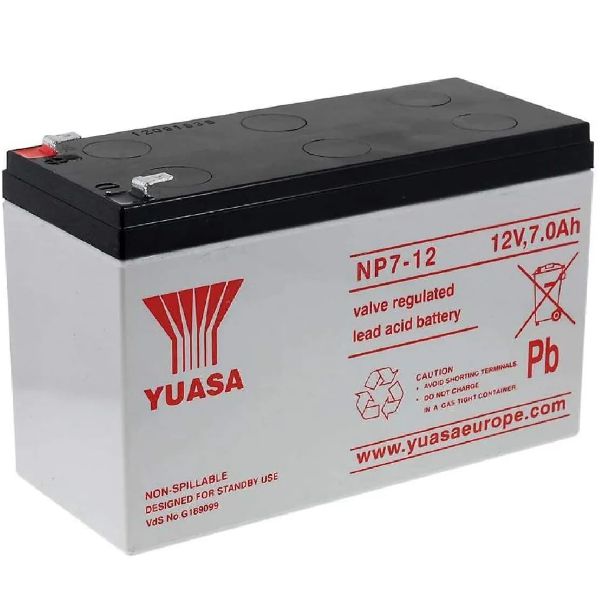

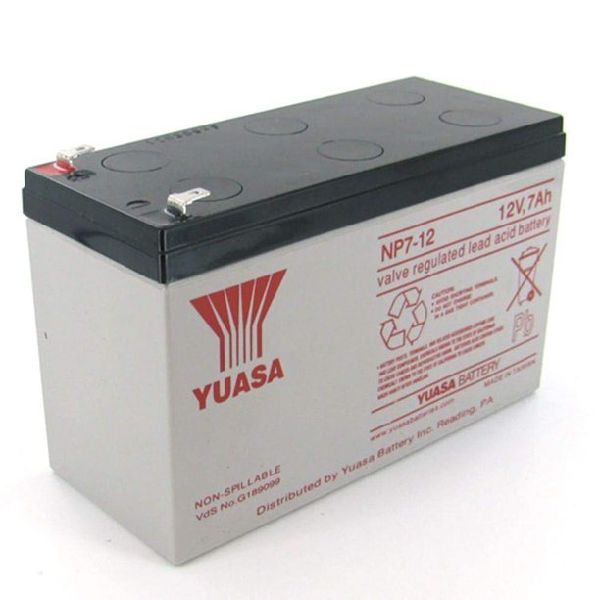

YUASA NP7-12 (12V 7Ah) Sealed Lead Acid Rechargeable Battery

Technical Details

Datasheet.

Features

• EUROBAT Classification: 3 to 5 years 'Standard Commercial'
• Genera purpose VRLA battery
• Lead Calcium Grids for superior life
• Absorbed Glass Mat construction with no free acid
• Gas recombination
• Manufactured worldwide
• Good recovery from deep discharge
• Operation in any orientation (excluding continuous inverted use)

Yuasa Standard NP Range The Yuasa NP series of batteries set the standard for quality and excellence in the field of rechargeable lead-acid batteries. The high-quality battery ensures that no electrolyte leakages occur from the case or terminals. This battery is almost maintenance-free with the perfectly sealed construction and the recombination of gases within the cell. The NP battery series uses a unique electrolyte suspension system incorporating a microfine glass mat (AGM) to retain the maximum amount of electrolyte in the cells. The valve regulated design of this battery is equipped with a safe low-pressure venting system, which releases excess gases and automatically reseals should there be a build-up of gas within the battery due to overcharging. The NP7-12 from Yuasa is a valve-regulated lead-acid battery with quick connect / FASTON (quick fit/release) terminals. Typical Applications Can be used in any orientation except in a continuous inverted position. Designed for industrial use as float or standby power applications such as; Alarm systems, Communications equipment, Control equipment, Emergency lighting systems, Medical equipment, Solar power systems, Uninterruptible power supplies, Power Management, Portable Devices, Consumer Electronics

Technical Specifications:

Case Type Ind AGM
Voltage 12V
Capacity at 20-hour Rate (Ah) 7
Cold Cranking Performance (Amps) EN1 NA
Cell Layout 3
Terminal A/D
Recommended Charge Rate (Amps) 1
Capacity Ah (20-HR) 7
Length (mm) 151
Width (mm) 65
Height (mm) 97.5
Weight (kg) 2.2
Nominal Voltage 12
Capacity Ah 7
Feature Range Auxilliary, Backup & Specialist Batteries
