L5F1

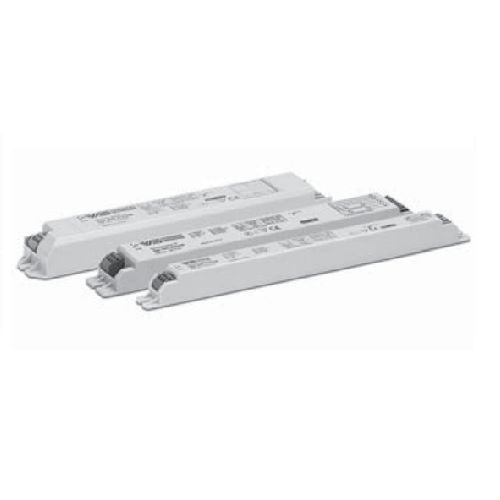

Vossloh Schwabe ELXc 128.239 Electronic Non-dim Ballast

Vossloh Schwabe ELXc 128.239 Electronic Non-dim Ballast

SKU 183123

$ 19.00 SGD
$ 21.00 SGD $ 19.00 SGD
Sale Sold out
Shipping calculated at checkout.

Request For Quote

Technical Details.

Datasheet

Electronic Built-in Ballasts
ELXc ECO EffectLine – Warm Start
for T5 and T8 Lamps
Casing: PC, white
DC voltage for operation: 176–264 V
for ignition: 198–264 V
(not possible for T8)
Connection: push-in terminals with lever opener
0.5–1.5 mm²
Switching frequency: for lighting systems with high
switching frequency (> 5/day)
EOL shut down for T5: approved acc. to EN 61347
Test 1
EOL shut down for T8

Technical Details:
Lamp
 For lamps Output W 28W
Type  ELXc 128.239
Casing

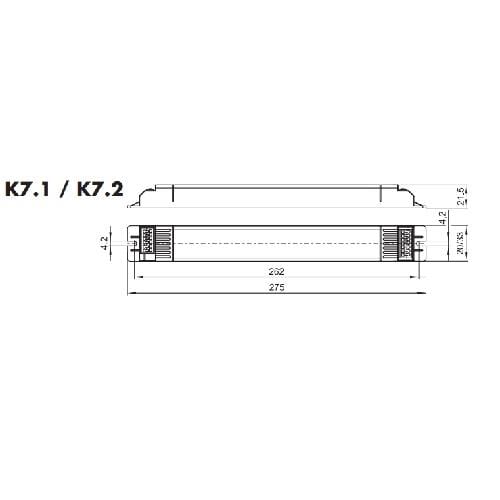

 K7.1
Power Consumption W 1 x 28.5
Electronic Ballast
Type  T5 HE
Ref. No 183123
Voltage AC 50,60 Hz V ±10% 220-240 V
Energy Efficiency A2 BAT
Ambient Temperature ta (°C) 0 to 50
Casing temperature  tc (°C) max. 75
Power factor
 > 0.95
System
Output w 31.5
Luminous factor(%) 100
Base G5
