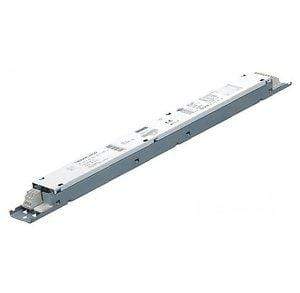

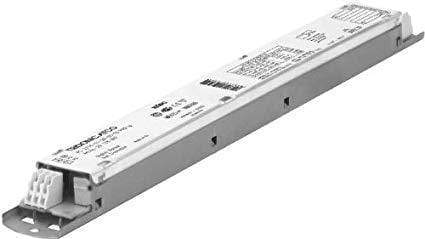

TRIDONIC PC 2x14-35 T5 PRO lp Ballast
TRIDONIC PC 2x14-35 T5 PRO lp Ballast
SKU SKU:22185148
Regular price
$ 77.00 SGD
Regular price
$ 77.00 SGD
Sale price
$ 77.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Share
Product description:
- Highest CELMA Energy Efficiency Index A2 BAT
- Nominal life-time up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.1 % per 1,000 h)
- Large temperature range (for values see table)
- Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
- Precise lamp operation using adjustment of lamp parameters
- Advanced SMART-Heating for min. 50,000 starts without replacement of lamps
- Constant luminous flux irrespective of fluctuations in mains voltage
- Designed for THD < 10 %
- For luminaires of protection class I and protection class II
- Automatic start after replacement of defective lamps
- Safety shutdown of defective lamps and at end of lamp life (EOL 2)
- Insulation Displacement Connection (IDC) terminal for rapid automatic or manual wiring
- For emergency lighting systems as per EN 50172
| Tridonic PC 2x14-35 T5 PRO lp | |
| Technical Details: | |
| Mains voltage range | 220 – 240 V |
| AC voltage range | 198 – 264 V |
| DC voltage range | 176 – 280 V (Lamp start ≥ 198 V DC) |
| Mains frequency | 0 / 50 / 60 Hz |
| Overvoltage protection | 320 V AC, 1 h |
| Defined warm start | ≤ 15 s |
| Operating frequency | ≥ 39.5 kHz |
| Type of protection | IP20 |
| Lamp Wattage | 2x14 |
| Lamp Type | T16(T5) |
| Type | PC 2x14-35 T5 PRO lp |
| Article No | 22185148 |
| Dimensions(LxWxH) | 360x30x21 mm |
| Hole spacing D | 350 mm |
| Lamp Power | 29.4 W |
| Circuit Power | 32.2 W |
| EEI | A2 BAT |
| Current at 50 Hz (220V/240 V) | 0.143 A / 0.130 A |
| λ at 50Hz (220 V/ 240 V) | 0.97 / 0.95 |
| tc point max | 85 °C |
| Ambient temperatur ta | -25 ... +75 °C |
| tc/ta for ≥ 50, 000 h | 80/70 °C |
| weight per pc | 0.243kg |
