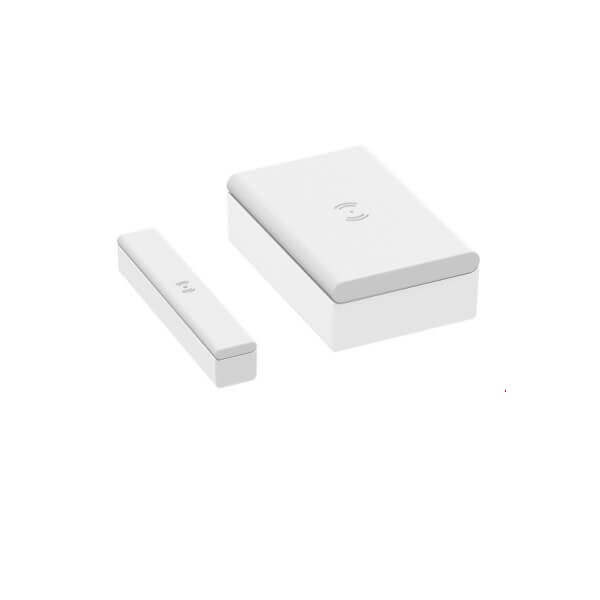

Schneider Wiser Window/Door Sensor
Schneider Wiser Window/Door Sensor
SKU SKU:CCT591011_AS
Regular price
$ 94.50 SGD
Regular price
$ 101.20 SGD
Sale price
$ 94.50 SGD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Technical Details:
Description:
The Wiser window/door sensor detects the status of windows and doors and sends this information to the gateway. It's a battery driven unit which helps to increase the safety in your home. It also helps to safe energy in combination with temperature control devices The information of the Window/door sensor can be used as a trigger for "Automations" or "Moments". The battery liftetime is minimum 5 years. A battery low warning is sent out, if the battery capacity will be less than 10%. Easy installation - the sensor can be either screwed or glued on the window or door frame.
Specifications:
| range compatibility | Wiser hub |
|---|---|
| range | Wiser |
| product or component type | Window/door contact |
| colour tint | White |
| supply | Battery3 V / CR2450 |
| device application | Security |
|---|---|
| battery life | 5 year(s) |
| communication port protocol | Zigbee at 2.4 GHz conforming to IEEE 802.15.4 |
| device composition | Sensor 50 mm x 33 mm x 16.3 mm magnet 50 mm x 9 mm x 9 mm |
| alive signal | 48/day |
| magnet gap | < 18 mm on wood and plastic surface < 10 mm on metallic surface |
| type of operator | Trigger action wood opening contact 32 mm Trigger action wood closing contact 30 mm Trigger action metal opening contact 20 mm Trigger action metal closing contact 18 mm |
| local signalling | 1 orange LED blinking , function: battery needs replacing LED, function: programming indication |
| standards | IEC 60669-2-5 EN 60669-2-5 |
| product certifications | CE Zigbee 3.0 CB RCM EAC |
| market segment | Residential |
