Schneider Wiser 360Degree ZB/IR convertor
Schneider Wiser 360Degree ZB/IR convertor
SKU SKU:CCT501401
Share
Technical Details:
Description:

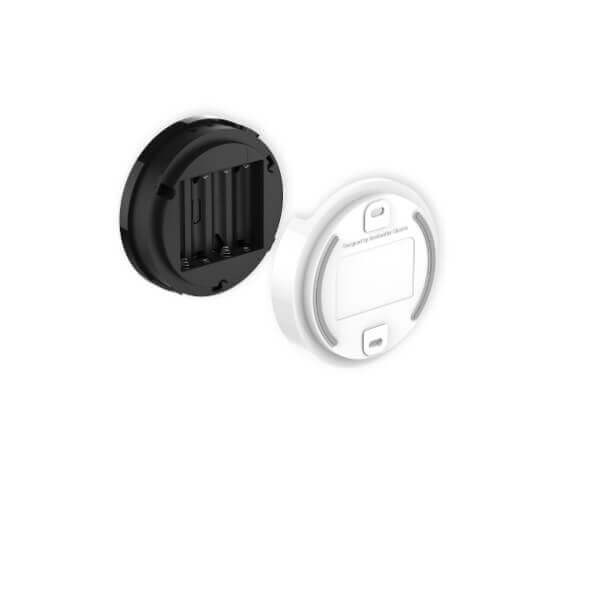

Wiser offers intelligent integration of home control devices and provides an enriching smart home journey thanks to Wiser by SE app. Wiser 360Degree ZB/IR Convertor controls the TV, air conditioner, music system and other devices via the Wiser by SE app using the infrared (IR) technology. This ZB/IR convertor is fixed on the ceiling or can be placed on the table top. This device has an indication light with 2 LEDs which guides you in the dark. It has 32.5 mm in height. It can detect a wide angle range of 180° (vertical angle) and 360° (horizontal angle). The Wiser 360Degree ZB/IR convertor is black and white in color with a battery life of approximately 1 year. It is powered by alkaline and this device is compatible with range Wiser. It reaches IP20 degree of protection. This device well satisfied the standard of EN 60950-1, IEC 60950-1. This ZB/IR convertor is CE certified. By being environment-friendly, this device is mercury free.
Specifications:
range | Wiser |
---|---|
product or component type | ZB/IR convertor |
battery type | 4 AA alkaline |
range compatibility | Wiser ZB/IP gateway Wiser |
---|---|
colour | Black and white |
communication network type | Radio frequency mesh conforming to IEEE 802.15.4 |
connector type | Connector(s)1 x micro USB port female for adaptor |
[Us] rated supply voltage | 5 V DC, <1 A |
[Ue] rated operational voltage | AC external adaptor: 100...240 V AC 50/60 Hz |
battery life | 1 year(s) |
local signalling | Indicator: 2 LEDs (green/red/orange) |
detection angle | 180° vertical position 360° horizontal position |
height | 32.5 mm |
diameter | 100 mm |
maximum sensing distance | 1 m with extensions cable 8 m infrared Wiser device |
