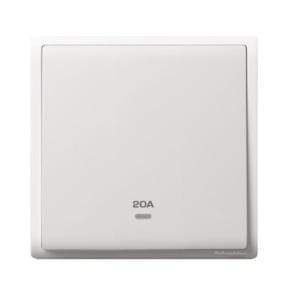

Schneider 20A 250V 1Gang Double Pole Switched with Neon Lamp

Regular price $ 40.00 SGD
Regular price $ 43.00 SGD Sale price $ 40.00 SGD
Sale Sold out
Shipping calculated at checkout.

Product Code:

AvailabilityIN STOCK

Type
Color

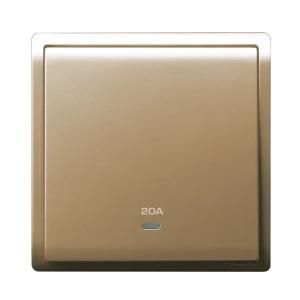

20A 250V 1Gang DP switched with Neon Lamp,Wine Gold (E8231D20N_WG )

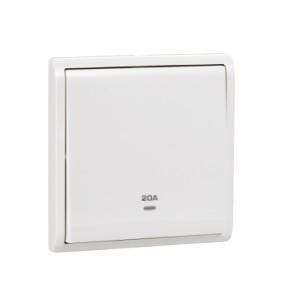

20A 250V 1 Gang Double Pole Switch with Neon, White (E8231D20N_WE)

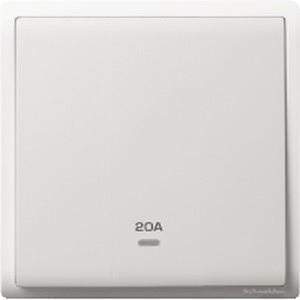

20A 250V 1Gang DP switched with Neon Lamp,White  (E8231D20N_WE_G2)

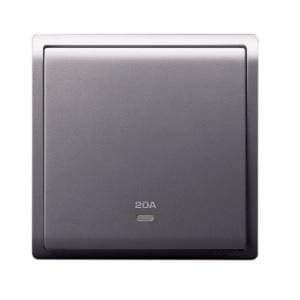

20A 250V 1 Gang Double Pole Switch with Neon, Lavendar Silver (E8231D20N_LS)

20A 250V 1 Gang 2 Way Double Pole Switch with Neon, White (E8231D20N_2_WE)

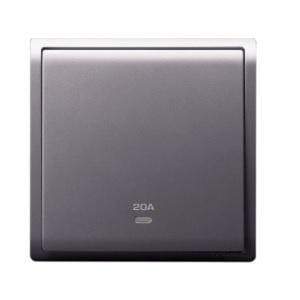

20A 250V 1 Gang 2 Way Double Pole Switch with Neon, Lavendar Silver(E8231D20N_2_LS)

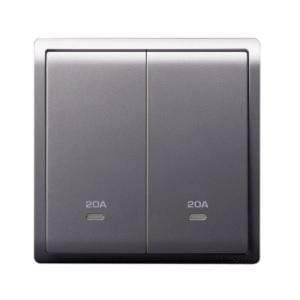

20A 250V 2 Gang Double Pole Switch with Neon, Lavendar Silver (E8232D20N_LS)

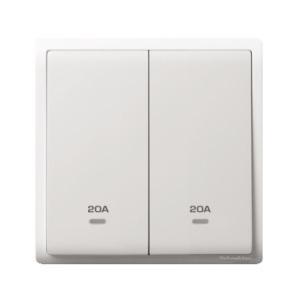

20A 250V 2 Gang Double Pole Switch with Neon, White (E8232D20N_WE)

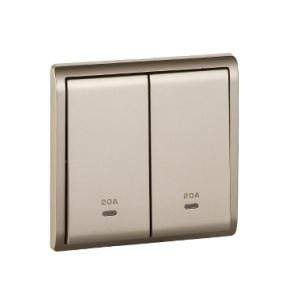

20A 250V 2Gang Dpswitched with Neon,Wine Gold (E8232D20N_WG_C5)

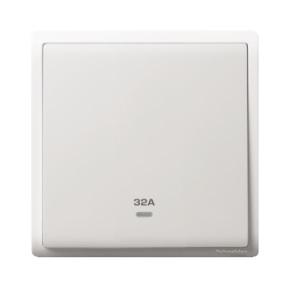

32A 250V 1 Gang Double Pole Switch with Neon, White (E8231D32N_WE)

32 A 250 V - 1gang double pole switch with neon (AS) (E8231D32N_AS)

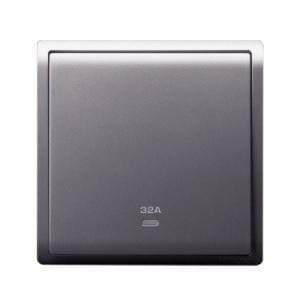

32A 250V 1 Gang Double Pole Switch with Neon, Lavendar Silver (E8231D32N_LS)

32A 250V - 1 gang double pole switch with neon (MB)  (E8231D32N_MB)

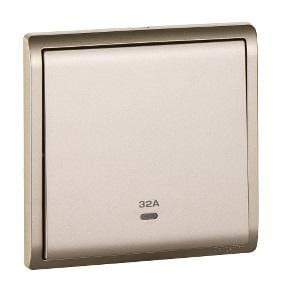

32A 250V - 1 gang double pole switch with neon (WG) (E8231D32N_WG)

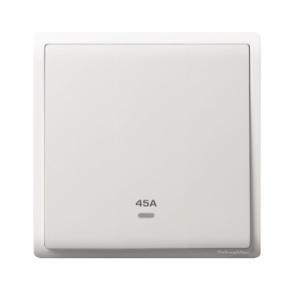

45A 250V 1 Gang Double Pole Switch with Neon, White (E8231D45N_WE)

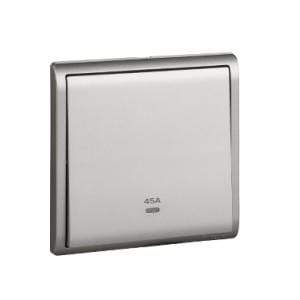

45 A 250 V - 1gang double pole switch with neon (AS) (E8231D45N_AS)

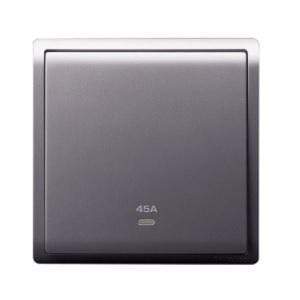

45A 250V 1 Gang Double Pole Switch with Neon, Lavendar Silver (E8231D45N_LS)

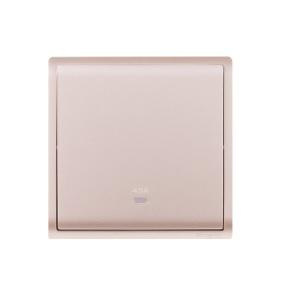

45 A 250 V - 1gang double pole switch with neon (WG)  (E8231D45N_WG)

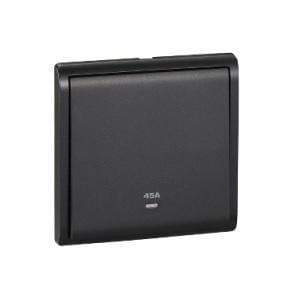

45A 250V - 1 gang double pole switch with neon (MB)  (E8231D45N_MB)



Main

range
Pieno
product or component type
Switch
device application
Control
switch application
Switch
load type
Resistive
Fluorescent
cover frame colour tint
Wine gold



Complementary

device mounting
Surface
Flush
wiring device mounting
Flush
Surface
rated current
20 A at 250 V AC 50 Hz
local signalling
Neon
number of gangs
1 gang
material
Polycarbonate: surround
Polycarbonate: grid plate
connections - terminals
Pillar terminals
clamping connection capacity
3 x 2.5 mm² for solid cable(s)
1 x 6 mm² for stranded cable(s)
embedding depth
23 mm
width
87 mm
height
87 mm
depth
32.2 mm



Environment

ambient air temperature for operation
-5…40 °C
relative humidity
0…95 %
standards
SS 227-1
IEC 60669-1
MS IEC 60669-1
BS EN 60669-1
GB 16915.1



Offer Sustainability

Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
Circularity Profile
No need of specific recycling operations
