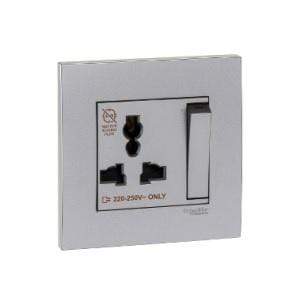

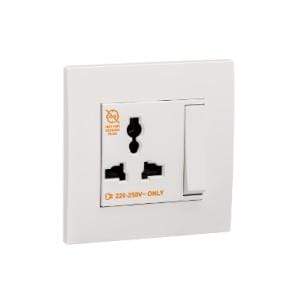

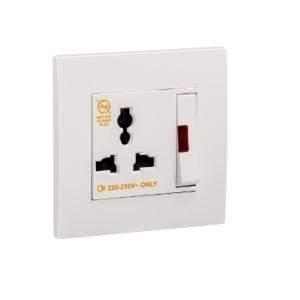

Schneider 13A 250V 1 Gang 3-Pin Universal Socket
Schneider 13A 250V 1 Gang 3-Pin Universal Socket
SKU SKU:KB413S
Regular price
$ 29.00 SGD
Regular price
$ 32.00 SGD
Sale price
$ 29.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
| product or component type |
Socket-outlet
|
|
|---|---|---|
| device short name |
KB426
|
|
| device presentation |
Complete mechanism
|
|
| outlet standard |
Universal
|
|
| Colour tint |
White
|
| outlet poles configuration |
2P + E
|
|
|---|---|---|
| number of gangs |
1 gang
|
|
| material |
Polycarbonate: grid plate
Polycarbonate: surround Nylon: base |
|
| projecting depth |
8 mm
|
|
| device mounting |
Flush
|
|
| mounting support |
Wall mounted
|
|
| fixing mode |
By screw M3.5
|
|
| fixing center |
60.3 mm
|
|
| embedding depth |
35 mm
|
|
| rated current |
13 A at 250 V AC, no inductive load
|
|
| network frequency |
50 Hz
|
|
| contacts material |
Brass and phosphor bronze
|
|
| connections - terminals |
Pillar terminal
|
|
| terminal identifier |
L
N E |
|
| tightening torque |
0.4 N.m
|
|
| clamping connection capacity |
2.5 mm²
4 mm² |
|
| width |
86 mm
|
|
| height |
86 mm
|
| ambient air temperature for operation |
-5…40 °C
|
|
|---|---|---|
| relative humidity |
0…95 %
|
|
| environmental characteristic |
Indoor use
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
|---|---|---|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Warranty |
18 months
|
|---|
