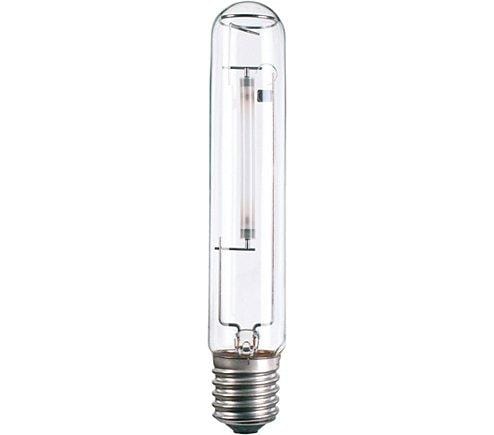

PHILIPS SON-T E27/E40
PHILIPS SON-T E27/E40
SKU SKU:928152800035
Regular price
$ 21.00 SGD
Regular price
$ 23.00 SGD
Sale price
$ 21.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
General Information
Light Technical
Operating and Electrical
Controls and Dimming
Mechanical and Housing
Approval and Application
Luminaire Design Requirements
| Cap-Base |
E40 [ E40]/E27
|
| Operating Position |
UNIVERSAL [ Any or Universal (U)]
|
| Life to 5% Failures (Nom) |
12000 h
|
| Life to 20% Failures (Nom) |
20000 h
|
| Life to 50% Failures (Nom) |
28000 h
|
| System Description |
External Ignitor
|
| Color Code |
220 [ CCT of 2000K]
|
| Luminous Flux (Rated) (Min) |
6000 lm / 13500 lm / 25200 lm / 43200 lm / 117000 lm
|
| Luminous Flux (Rated) (Nom) |
15000 lm / 28000 lm / 48000 lm / 130000 lm
|
| Lumen Maintenance 2000 h (Min) |
90 %
|
| Lumen Maintenance 2000 h (Nom) |
95 %
|
| Lumen Maintenance 5000 h (Min) |
85 %
|
| Lumen Maintenance 5000 h (Nom) |
90 %
|
| Correlated Color Temperature (Nom) |
2000 K
|
| Luminous Efficacy (rated) (Nom) |
98 lm/W
|
| Color Rendering Index (Max) |
25
|
| Color Rendering Index (Nom) |
-
|
| Power (Rated) (Nom) |
150 W / 70 W / 250 W / 400 W / 1000 W
|
| Lamp Current (EM) (Nom) |
1.8 A
|
| Ignition Supply Voltage (Max) |
198 V
|
| Ignition Peak Voltage (Max) |
2800 V
|
| Re-Ignition Time (Min) (Max) |
180 s
|
| Ignition Time (Max) |
5 s
|
| Voltage (Max) |
115 V
|
| Voltage (Min) |
85 V
|
| Voltage (Nom) |
100 V
|
| Dimmable |
Yes
|
| Run-Up Time 90% (Max) |
5 min
|
| Bulb Finish |
Clear
|
| Cap-Base Information |
-
|
| Energy Efficiency Label (EEL) |
A+
|
| Mercury (Hg) Content (Nom) |
20.4 mg
|
| Energy Consumption kWh/1000 h |
162 kWh
|
| Bulb Temperature (Max) |
450 °C
|
| Cap-Base Temperature (Max) |
250 °C
|
