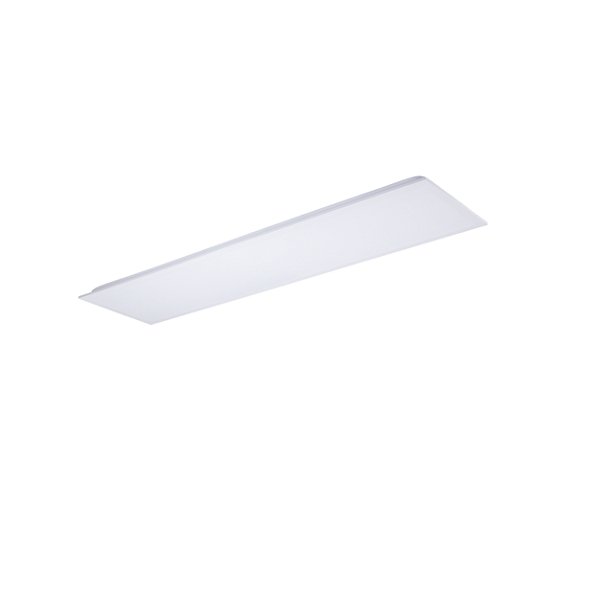

Philips RC048B LED32S PSU W30L120 NOC GM 1x4 ft Panel Light x4PCs
Philips RC048B LED32S PSU W30L120 NOC GM 1x4 ft Panel Light x4PCs
SKU SKU:911401837680
Regular price
$ 304.00 SGD
Regular price
$ 326.00 SGD
Sale price
$ 304.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Technical Details
Datasheet: https://www.lighting.philips.com/main/prof/indoor-luminaires/recessed/smartbright-direct-panel-g2/911401837780_EU/product
General information
| Beam angle of light source |
120 °
|
| Light source color |
865 cool daylight
|
| Light source replaceable |
No
|
| Number of gear units |
1 unit
|
| Driver/power unit/transformer |
Power supply unit
|
| Driver included |
Yes
|
| Optic type |
Beam angle 120°
|
| Optical cover/lens type |
Opal
|
| Luminaire light beam spread |
120°
|
| Control interface |
-
|
| Connection |
Connection unit 2-pole
|
| Cable |
Cable 0.3 m without plug
|
| Protection class IEC |
Safety class II
|
| Glow-wire test |
Temperature 650 °C, duration 30 s
|
| Flammability mark |
-
|
| CE mark |
CE mark
|
| ENEC mark |
-
|
| Warranty period |
3 years
|
| Constant light output |
No
|
| Number of products on MCB of 16 A type B |
35
|
| EU RoHS compliant |
No
|
| Light source engine type |
LED
|
| Input Voltage |
220 to 240 V
|
| Input Frequency |
50 or 60 Hz
|
| Initial CLO power consumption |
- W
|
| Average CLO power consumption |
- W
|
| Inrush current |
15 A
|
| Inrush time |
0.04 ms
|
| Power Factor (Min) |
0.9
|
| Dimmable |
No
|
| Housing Material |
Steel
|
| Reflector material |
Acrylate
|
| Optic material |
Polystyrene
|
| Optical cover/lens material |
Polystyrene
|
| Fixation material |
-
|
| Optical cover/lens finish |
Opal
|
| Overall length |
1195 mm
|
| Overall width |
295 mm
|
| Overall height |
34 mm
|
| Color |
White
|
| Ingress protection code |
IP20 [ Finger-protected]
|
| Mech. impact protection code |
IK02 [ 0.2 J standard]
|
| Initial luminous flux (system flux) |
3200 lm
|
| Luminous flux tolerance |
+/-10%
|
| Initial LED luminaire efficacy |
88 lm/W
|
| Init. Corr. Color Temperature |
6500 K
|
| Init. Color Rendering Index |
≥80
|
| Initial chromaticity |
(0.312;0.328) SDCM≤5
|
| Initial input power |
36 W
|
| Power consumption tolerance |
+/-10%
|
| Driver failure rate at 5000 h |
0.0006 %
|
| Median useful life L70B50 |
30000 h
|
| Median useful life L80B50 |
22000 h
|
| Median useful life L90B50 |
10000 h
|
