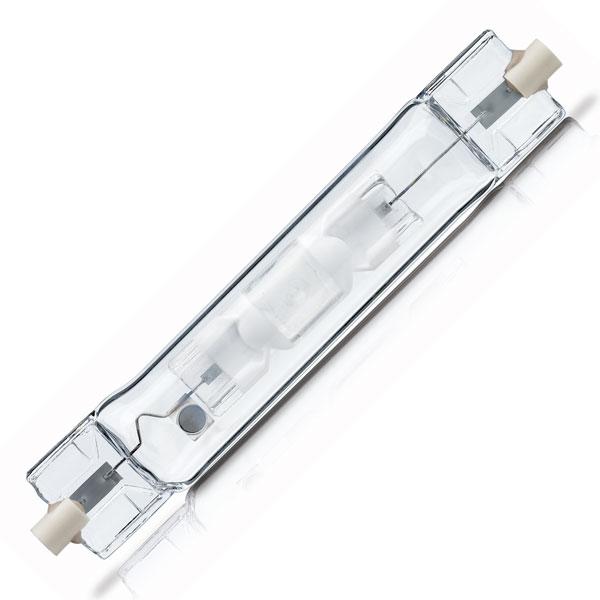

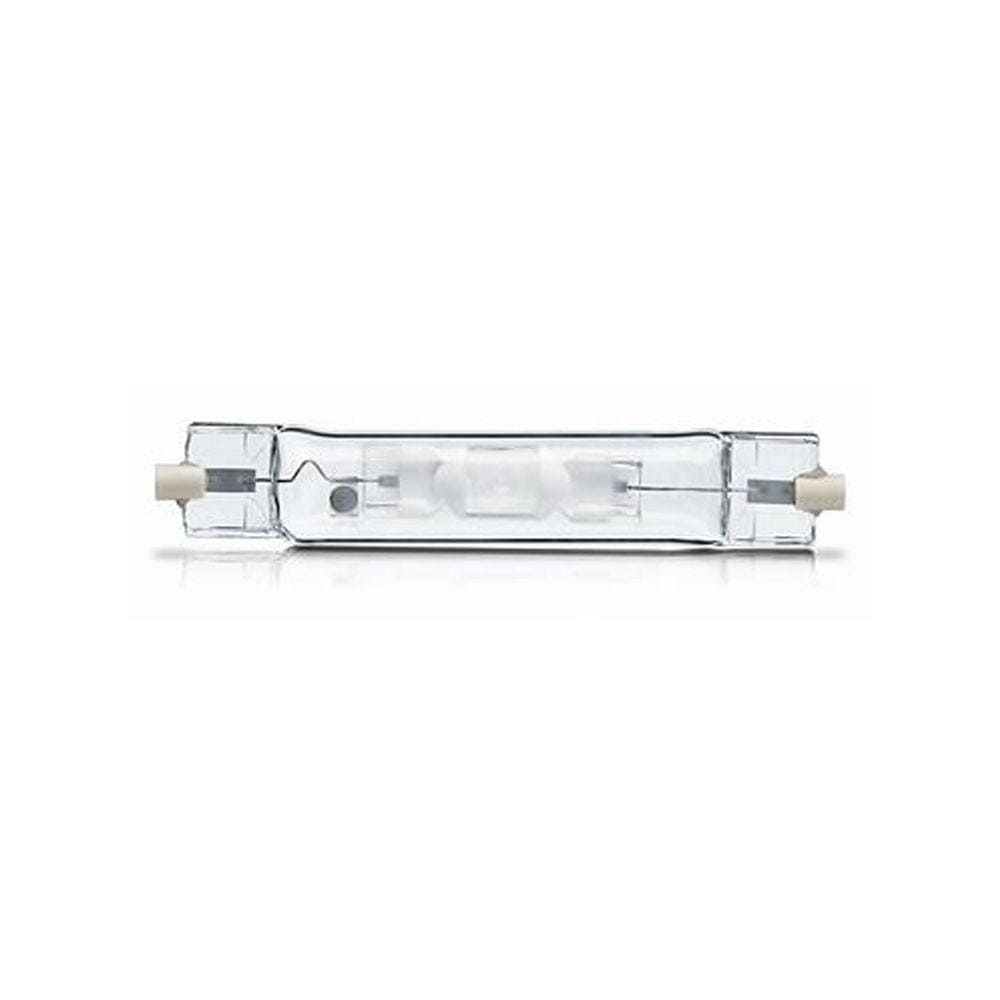

PHILIPS MHN-TD RX7s x8PCs
PHILIPS MHN-TD RX7s x8PCs
SKU SKU:928482400092
Regular price
$ 200.00 SGD
Regular price
$ 200.00 SGD
Sale price
$ 200.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
General Information
Light Technical
Operating and Electrical
Controls and Dimming
Mechanical and Housing
Approval and Application
Luminaire Design Requirements
| Cap-Base |
RX7S [ RX7s]
|
| Operating Position |
P45 [ Parallel +/-45D or Horizontal(HOR)]
|
| Life to 5% Failures (Min) |
4000 h
|
| Life to 5% Failures (Nom) |
5000 h
|
| Life to 20% Failures (Min) |
5800 h
|
| Life to 20% Failures (Nom) |
7000 h
|
| Life to 50% Failures (Min) |
7500 h
|
| Life to 50% Failures (Nom) |
9000 h
|
| ANSI Code HID |
M85/E
|
| Footnotes HID 1 |
Color characteristics may vary somewhat from one lamp type to another. Time should be allowed for the lamp to stabilize in color when it is turned on for the first time or if for any reason its operating position is changed. This may require several hours' operation, with more than one start. Lamp color and output may change temporarily if the lamp is subjected to excess vibration or shock. Lamp color characteristics may change after long accumulate operating time.
|
| Footnotes HID 2 |
Performance may not be satisfactory unless operated within specified operating positions. (374)
|
| Color Code |
730 [ CCT of 3000K] / 842[CCT of 4200K]
|
| Luminous Flux (Rated) (Min) |
5200 lm / 5000 lm / 12200 lm / 11600 lm
|
| Luminous Flux (Rated) (Nom) |
6000 lm / 5700 lm / 13200 lm / 12900 lm
|
| Color Designation |
Warm White (WW) / Cool White
|
| Lumen Maintenance 10000 h (Min) |
45 %
|
| Lumen Maintenance 10000 h (Nom) |
55 %
|
| Lumen Maintenance 2000 h (Min) |
59 %
|
| Lumen Maintenance 2000 h (Nom) |
65 %
|
| Lumen Maintenance 5000 h (Min) |
53 %
|
| Lumen Maintenance 5000 h (Nom) |
60 %
|
| Chromaticity Coordinate X (Nom) |
434
|
| Chromaticity Coordinate Y (Nom) |
400
|
| Correlated Color Temperature (Nom) |
3000 K
|
| Luminous Efficacy (rated) (Nom) |
80 lm/W
|
| Color Rendering Index (Nom) |
70
|
| Power (Rated) (Nom) |
70 W / 150 W
|
| Lamp Current Run-Up (Max) |
1.35 A
|
| Lamp Current (EM) (Nom) |
0.98 A
|
| Ignition Supply Voltage (Max) |
198 V
|
| Ignition Peak Voltage (Max) |
5000 V
|
| Ignition Supply Voltage (Min) |
198 V
|
| Ignition Peak Voltage (Min) |
1800 V
|
| Voltage (Max) |
98 V
|
| Voltage (Min) |
78 V
|
| Voltage (Nom) |
90 V
|
| Dimmable |
No
|
| Bulb Finish |
Clear
|
| Cap-Base Information |
-
|
| Energy Efficiency Label (EEL) |
A+
|
| Mercury (Hg) Content (Nom) |
13.4 mg
|
| Energy Consumption kWh/1000 h |
77 kWh
|
| Bulb Temperature (Max) |
500 °C
|
| Pinch Temperature (Max) |
280 °C
|
