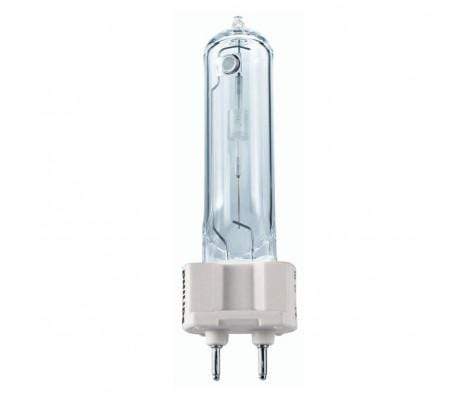

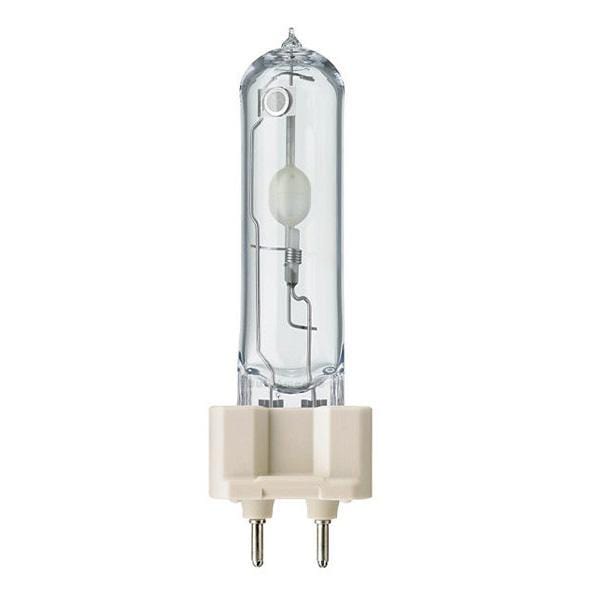

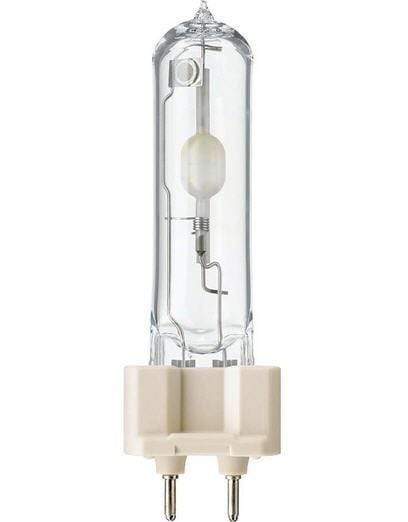

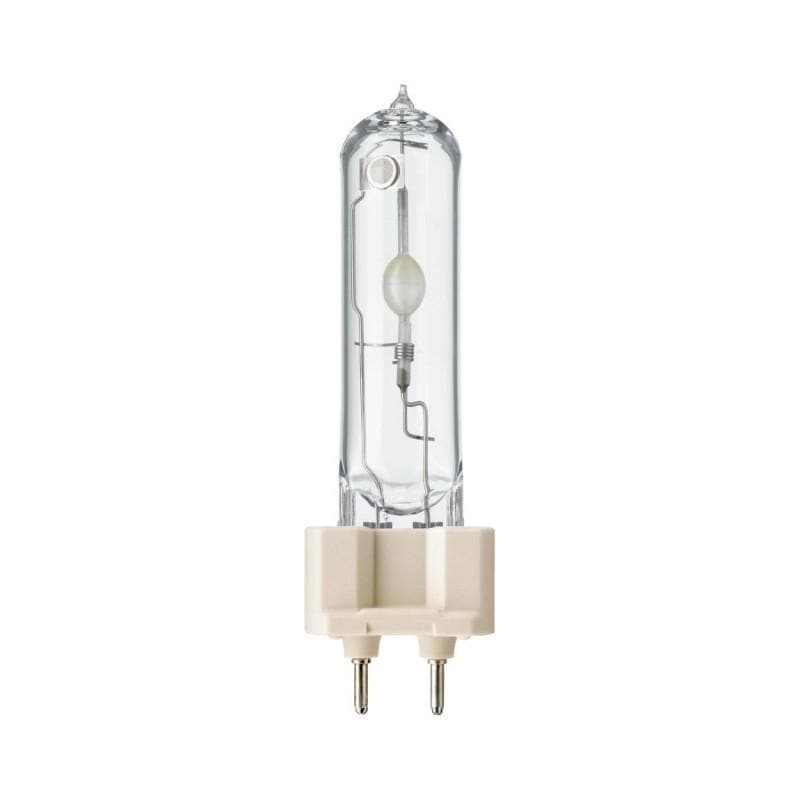

PHILIPS MasterColour CDM-T G12 Bulb x5PCs
PHILIPS MasterColour CDM-T G12 Bulb x5PCs
SKU SKU:928183305125
Regular price
$ 145.00 SGD
Regular price
$ 156.00 SGD
Sale price
$ 145.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
General Information
Light Technical
Operating and Electrical
Controls and Dimming
Mechanical and Housing
Approval and Application
UV
Luminaire Design Requirements
| Cap-Base |
G12 [ G12]
|
| Operating Position |
UNIVERSAL [ Any or Universal (U)]
|
| Life to 5% Failures (Nom) |
12000 h
|
| Life to 10% Failures (Nom) |
14000 h
|
| Life to 20% Failures (Nom) |
16000 h
|
| Life to 50% Failures (Nom) |
20000 h
|
| ANSI Code HID |
C156/E
|
| Color Code |
830 [ CCT of 3000K] / 942[CCT of 4200K]
|
| Luminous Flux (Rated) (Min) |
1620 lm / 3120 lm / 3000 lm / 5800 lm / 6300 lm / 12000 lm / 11200 lm / 24780 lm / 23400 lm
|
| Luminous Flux (Rated) (Nom) |
1800 lm / 6400 lm / 13300 lm / 12400 lm / 27540 lm / 26000 lm
|
| Color Designation |
Warm White (WW)
|
| Lumen Maintenance 12000 h (Nom) |
77 %
|
| Lumen Maintenance 10000 h (Nom) |
78 %
|
| Lumen Maintenance 2000 h (Nom) |
87 %
|
| Lumen Maintenance 5000 h (Nom) |
83 %
|
| Chromaticity Coordinate X (Nom) |
0.434
|
| Chromaticity Coordinate Y (Nom) |
0.391
|
| Correlated Color Temperature (Nom) |
3000 K
|
| Luminous Efficacy (rated) (Nom) |
90 lm/W
|
| Color Rendering Index (Nom) |
84
|
| Power (Rated) (Min) |
20.0 W / 35 W / 70 W / 150 W /250 W
|
| Power (Rated) (Nom) |
20.0 W / 35 W / 70 W / 150 W /250 W
|
| Lamp Current Run-Up (Max) |
0.5 A
|
| Re-Ignition Time (Min) (Max) |
15 min
|
| Ignition Time (Max) |
30 s
|
| Voltage (Max) |
100 V
|
| Voltage (Min) |
90 V
|
| Voltage (Nom) |
95 V
|
| Dimmable |
No
|
| Run-Up Time 90% (Max) |
3 min
|
| Bulb Finish |
Clear
|
| Energy Efficiency Label (EEL) |
A+
|
| Mercury (Hg) Content (Nom) |
3.5 mg
|
| Energy Consumption kWh/1000 h |
22 kWh
|
| Pet (Niosh) (Min) |
8 h/500lx
|
| Damage Factor D/fc (Max) |
0.4
|
| Bulb Temperature (Max) |
250 °C
|
