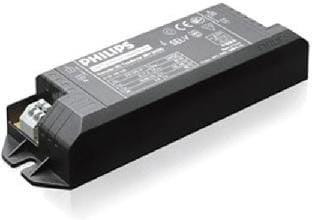

Philips Economic LED Transformer 24VDC x 20PCs
Philips Economic LED Transformer 24VDC x 20PCs
SKU SKU:913710033080
Regular price
$ 320.00 SGD
Regular price
$ 320.00 SGD
Sale price
$ 320.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Share
General Information
Operating and Electrical
Wiring
System characteristics
Temperature
Approval and Application
| Lamp Type |
LV Halogen
|
| Number of Products on MCB (16A Type B) (Max) |
12
|
| Automatic Restart |
Yes
|
| Input Voltage |
220 to 240 V
|
| Input Frequency |
50 to 60 Hz
|
| Operating Frequency (Nom) |
45-66 kHz
|
| Power Factor 100% Load (Nom) |
0.95
|
| Ignition Time (Nom) |
0.8 s
|
| Mains Voltage Performance (AC) |
202...254V
|
| Mains Voltage Safety (AC) |
-8%-+6%
|
| Inrush Current Width |
0.32 ms
|
| Power Losses (Nom) |
15 W
|
| Inrush Current Peak (Max) |
35 A
|
| Output Voltage |
11.3 V
|
| Connector Type Input Terminals |
Screw
|
| Connector Type Output Terminals |
Screw
|
| Cable Length From Device to Lamp |
1.0 m
|
| Wire Striplength |
6.0-8.0 mm
|
| Input Terminal Cross Section |
0.75-2.50 mm²
|
| Output Terminal Cross Section |
0.75-2.50 mm²
|
| Rated Ballast-Lamp Power |
30W / 60W / 120 W / 180W
|
| T-Ambient (Max) |
50 °C
|
| T-Ambient (Min) |
-20 °C
|
| T-Storage (Max) |
80 °C
|
| T-Storage (Min) |
-40 °C
|
| T-Case Lifetime (Max) |
65 °C
|
| T-Case Maximum (Max) |
90 °C
|
| Approval Marks |
CE marking RoHS Compliant CCC certificate SELV ENEC certificate |
