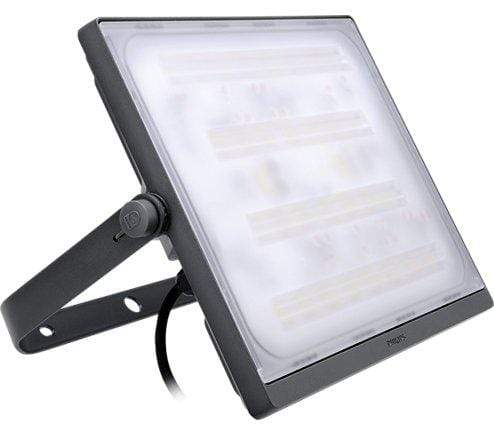

PHILIPS BVP175 LED142 150W WB Grey CE Flood Light
Regular price
$ 329.00 SGD
Regular price
$ 353.00 SGD
Sale price
$ 329.00 SGD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
General Information
Operating and Electrical
Controls and Dimming
Mechanical and Housing
Approval and Application
Initial Performance (IEC Compliant)
Application Conditions
Lamp family code |
LED142 [ LED module 14250 lm]
|
Light source color |
757 cool white
|
Light source replaceable |
No
|
Driver included |
Yes
|
Optical cover/lens type |
Polycarbonate bowl/cover UV-resistant
|
Luminaire light beam spread |
30° x 80°
|
Control interface |
-
|
Connection |
Flying leads/wires
|
Cable |
Cable 0.6 m without plug
|
Protection class IEC |
Safety class I
|
Flammability mark |
For mounting on normally flammable surfaces
|
CE mark |
CE mark
|
Constant light output |
No
|
Number of products on MCB of 16 A type B |
17
|
Light source engine type |
LED
|
Input Voltage |
220 to 240 V
|
Input Frequency |
50 or 60 Hz
|
Inrush current |
10.6 A
|
Inrush time |
0.066 ms
|
Power Factor (Min) |
0.9
|
Dimmable |
No
|
Housing Material |
Aluminum die cast
|
Optical cover/lens material |
Polycarbonate
|
Mounting device |
Mounting bracket adjustable
|
Optical cover/lens shape |
Flat
|
Optical cover/lens finish |
Frosted
|
Overall length |
340 mm
|
Overall width |
260 mm
|
Overall height |
65 mm
|
Effective projected area |
0.09 m²
|
Color |
Gray
|
Ingress protection code |
IP65 [ Dust penetration-protected, jet-proof]
|
Mech. impact protection code |
IK07 [ 2 J reinforced]
|
Surge Protection (Common/Differential) |
6/6 kV
|
Initial luminous flux (system flux) |
14250 lm
|
Luminous flux tolerance |
+/-10%
|
Initial LED luminaire efficacy |
95 lm/W
|
Init. Corr. Color Temperature |
5700 K
|
Init. Color Rendering Index |
>70
|
Initial chromaticity |
SDCM<7
|
Initial input power |
150 W
|
Power consumption tolerance |
+/-10%
|
Ambient temperature range |
-40 to +45 °C
|
Maximum dim level |
Not applicable
|
