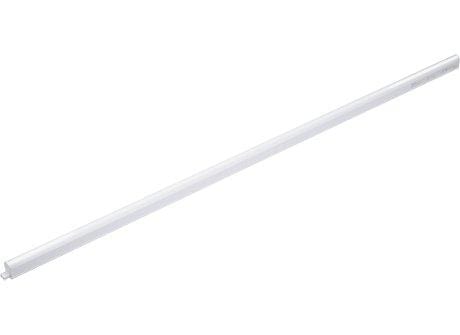

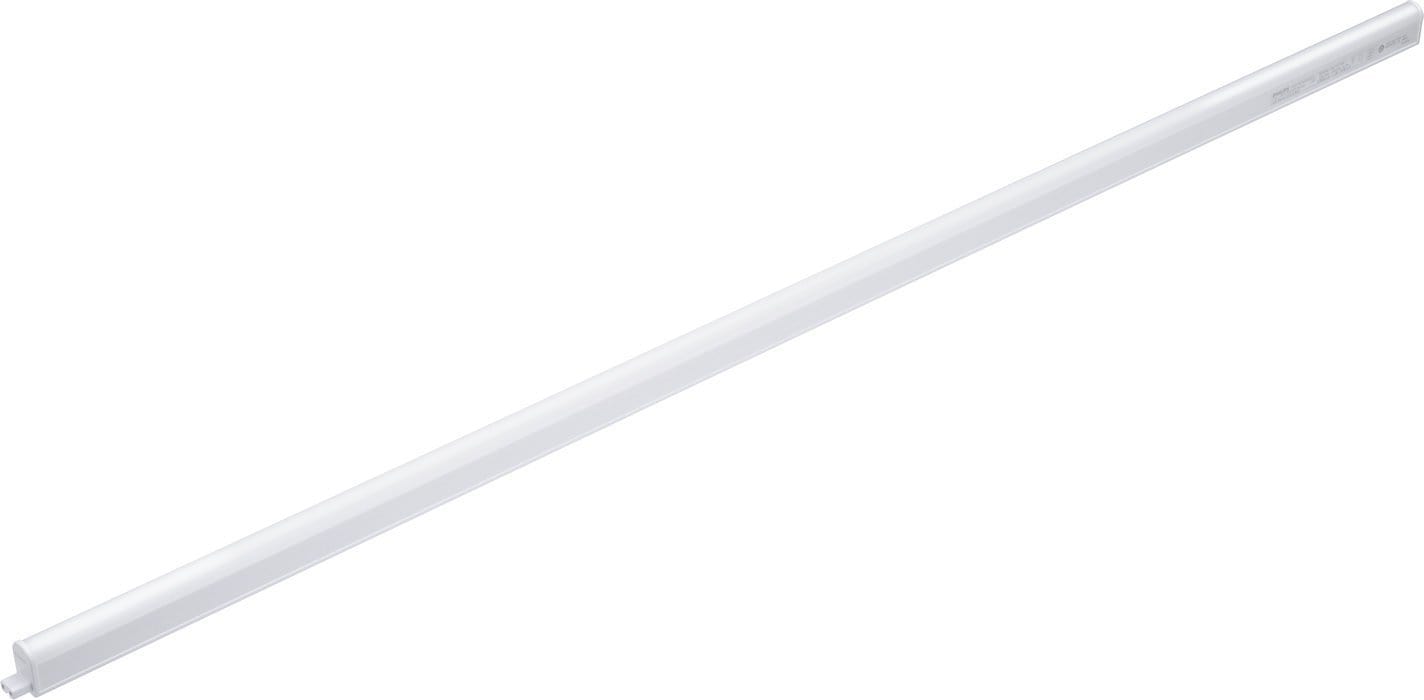

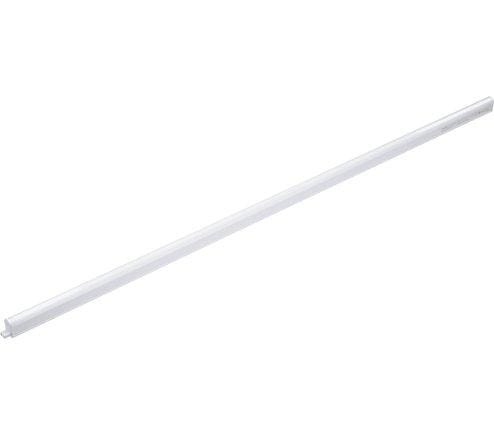

PHILIPS BN068C LED3 L300 G2 Batten
PHILIPS BN068C LED3 L300 G2 Batten
SKU SKU:911401818597
Regular price
$ 11.00 SGD
Regular price
$ 12.00 SGD
Sale price
$ 11.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Share
General Information
Operating and Electrical
Controls and Dimming
Mechanical and Housing
Approval and Application
Over Time Performance (IEC Compliant)
Application Conditions
| Light source colour |
Neutral white / Cool white
|
| Light source replaceable |
No
|
| Number of gear units |
1 unit
|
| Driver/power unit/transformer |
PSU [ Power supply unit]
|
| Driver included |
Yes
|
| Optic type |
WB [ Wide beam]
|
| Luminaire light beam spread |
140°
|
| Connection |
Flying leads/wires
|
| Cable |
Cable without plug 2-pole
|
| Protection class IEC |
Safety class II (II)
|
| Glow-wire test |
850/5 [ Temperature 850 °C, duration 5 s]
|
| CE mark |
-
|
| Warranty period |
1 years
|
| Constant light output |
No
|
| Number of products on MCB |
10
|
| RoHS mark |
RoHS mark
|
| Input voltage |
220 to 240 V
|
| Input frequency |
50 to 60 Hz
|
| Power factor (min.) |
0.5
|
| Dimmable |
No
|
| Housing material |
Polyamide
|
| Optic material |
Polycarbonate
|
| Optical cover/lens material |
Polyamide
|
| Fixation material |
Steel
|
| Optical cover/lens finish |
Clear
|
| Overall length |
325 mm
|
| Overall width |
21 mm
|
| Overall height |
34.2 mm
|
| Ingress protection code |
IP20 [ Finger-protected]
|
| Mech. impact protection code |
IK00 [ No protection]
|
Initial Performance (IEC Compliant)
| Initial luminous flux |
300 lm
|
| Luminous flux tolerance |
+/-10%
|
| Initial LED luminaire efficacy |
80 lm/W
|
| Init. Corr. colour temperature |
4000 K / 6500 K
|
| Init. colour rendering index |
>80
|
| Initial chromaticity |
SDCM<7
|
| Initial input power |
3.75 W
|
| Power consumption tolerance |
+/-10%
|
| Median useful life L70B50 |
20000 h
|
| Ambient temperature range |
-20 to +40 °C
|
| Maximum dimming level |
Not applicable
|
| Suitable for random switching |
Not applicable
|
