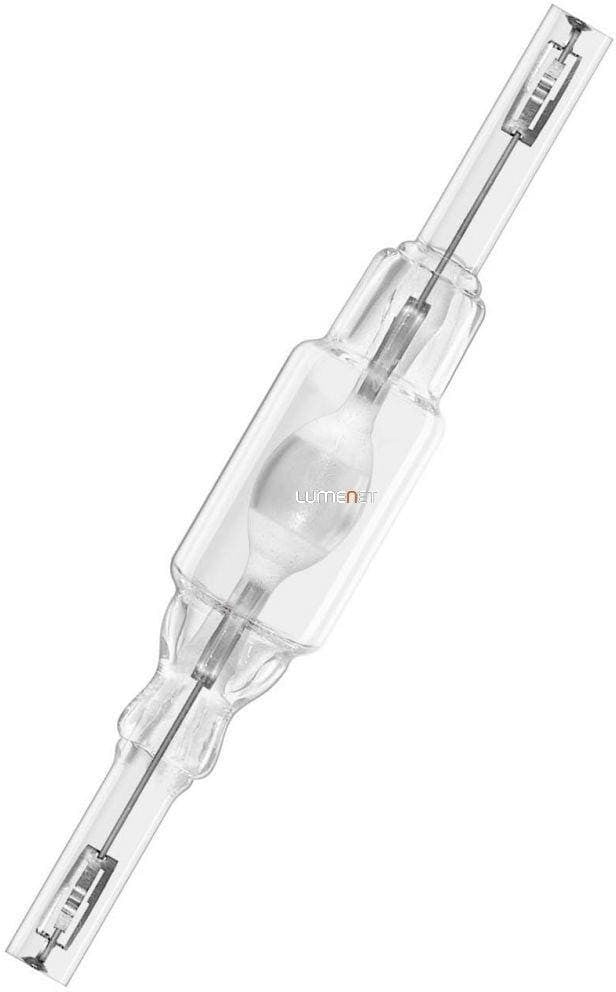

Osram Powerstar HQI-TS Excellence
Osram Powerstar HQI-TS Excellence
SKU SKU:4008321624758
Regular price
$ 30.00 SGD
Regular price
$ 32.00 SGD
Sale price
$ 30.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Electrical data
| Nominal wattage | 70 W / 150 W |
|---|---|
| Rated wattage | 75.00 W |
| Lamp current | 1.0 A |
| PFC capacitor at 50 Hz |
12 µF
|
| Nominal voltage | 87 V |
| Ignition voltage |
3.6 / 36 kVp
|
Photometrical data
| Rated lamp efficacy (standard condition) | 74 lm/W |
|---|---|
| Rated luminous flux | 5530 lm |
| Color rendering index Ra | 76 |
| Color temperature | 6500 K |
| Light color | 6500 |
| Rated LLMF at 2,000 h | 0.95 |
| Rated LLMF at 4,000 h | 0.93 |
| Rated LLMF at 6,000 h | 0.85 |
| Rated LLMF at 8,000 h | 0.82 |
| Rated LLMF at 12,000 h | 0.75 |
| UV protection | Yes |
| Light color (designation) | Cool Daylight |
| Luminous flux | 5530 lm - 12000 lm |
Dimensions & weight
| Diameter | 19.0 mm |
|---|---|
| Length | 117.0 mm |
| Light center length (LCL) | 57.0 mm |
| Product weight | 17.00 g |
Temperatures & operating conditions
| Maximum permitted pinch temperature | 350 °C |
|---|
Lifespan
| Rated lamp survival factor at 2,000 h | 0.95 |
|---|---|
| Rated lamp survival factor at 4,000 h | 0.90 |
| Rated lamp survival factor at 6,000 h | 0.85 |
| Rated lamp survival factor at 8,000 h | 0.80 |
| Rated lamp survival factor at 12,000 h | 0.50 |
| Lifespan B50 | 12000 h |
Additional product data
| Base (standard designation) | RX7s |
|---|---|
| Design / version | Clear |
| Mercury content | 9.3 mg |
Capabilities
| Dimmable | No |
|---|---|
| Burning position | p45 |
| Enclosed luminaire required | Yes |
| Hot restart | Yes |
Certificates & standards
| Energy efficiency class | A |
|---|---|
| Energy efficiency class | A |
| Energy consumption | 83 kWh/1000h |
Country-specific categorizations
| ILCOS | MD/UB-70/865-H/E/SL-RX7s-19/117/H |
|---|
