P5K6

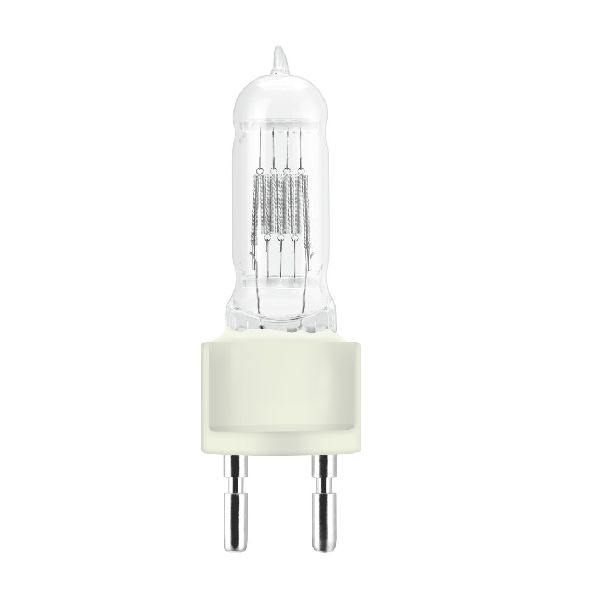

OSRAM 64747 240V 1000W Single Ended Halogen Lamp

OSRAM 64747 240V 1000W Single Ended Halogen Lamp

SKU SKU:4008321468741

Regular price $ 58.00 SGD
Regular price $ 62.00 SGD Sale price $ 58.00 SGD
Sale Sold out
Shipping calculated at checkout.

Request For Quote

Technical Details


Product family features
  • Operation at mains voltage: 120 V | 230 V | 240 V
  • Color temperature: 3,000 K (with longer lifespan)
  • Color temperature: 3,200 K (for professional film and TV work)
Areas of application
  • Professional film and TV work
  • Theater and concert stages
  • Entertainment

Safety advice
To prevent personal injury or damage to property, halogen lamps may only be operated in suitable luminaires designed with suitable mechanisms (protective shields, grids, etc.) to ensure that in the event of a lamp bursting no parts/shards can escape and that during operation no ultraviolet radiation can escape. There must also be a warning sign to indicate that the lamps give off high levels of heat. Detailed information is available on request.

Technical Data

Country specific categorizations

Order reference

64747

ANSI code

FKJ

LIF

CP/71

Electrical data

Nominal wattage

1000.00 W

Nominal voltage

240 V

Mains or non-mains

MLS

Claim of equivalent power

No

Networked standby power

0

Energy consumption in on-mode

1045

Standby power

0

On-mode power Pon

1045.0

Photometrical data

Color temperature

3200 K

Φuse value refers to luminous flux ..

in a sphere (360°)

Correlated color temperature CCT

3127

Useful luminous flux

24685

Color rendering index Ra

100

Chromaticity coordinate x

0.422

Chromaticity coordinate y

0.422

Light technical data

Non-directional or directional

NDLS

High luminance light source

No

Dimensions & weight

Diameter

26.0 mm

Length

140.0 mm

Light center length (LCL)

63.5 mm

Illuminated field

13.0*15.0 mm²

Filament diameter

15.0 mm

Height [PIM]

140

Width [PIM]

25

Length [PIM]

25

Lifespan

Lifespan

200 h

Additional product data

Base (standard designation)

G22

Replacement prod. for a fluorescent lamp

No

Lighting technology used

HL

Envelope

No

Anti-glare shield

No

Capabilities

Dimmable

Yes

Burning position

s90

Colour-tuneable light source

No

Connected light source

No

Certificates & standards

EEI – Energy Label

B

Energy efficiency class

G

Logistical data

EAN 10 of contained light source

4008321468741
