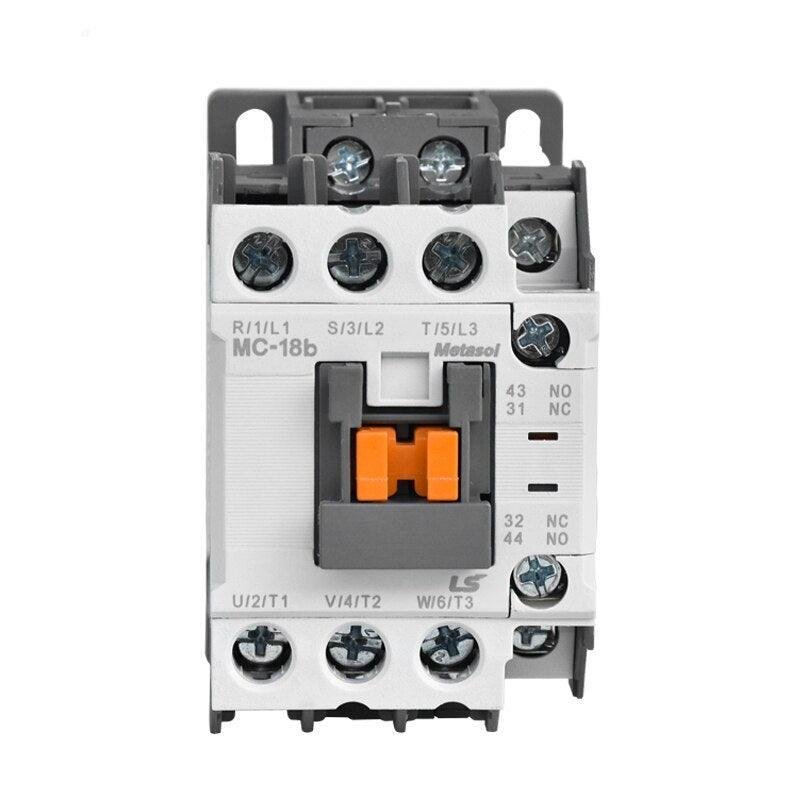

LS MC-18B-A240 3P 18A 240VAC Magnetic Contactor
LS MC-18B-A240 3P 18A 240VAC Magnetic Contactor
SKU:MC-18B-A240
Couldn't load pickup availability
Share
The LS MC-18B-A240 Magnetic Contactor is a reliable industrial-grade 3-pole contactor designed for motor control, automation systems, HVAC equipment, pumps, compressors, and industrial switching applications. This Metasol MC type contactor features an 18A rated operational current, 240VAC coil voltage, and built-in 1NO + 1NC auxiliary contacts (1A1B) for flexible control operations.
The compact and durable design ensures stable switching performance, long electrical life, and easy DIN rail or panel mounting. Designed according to IEC industrial standards, the MC-18B-A240 is suitable for low-voltage motor starters and industrial automation panels.
Its screw clamp terminals provide secure wiring connections, while the high mechanical durability ensures dependable operation in demanding industrial environments.
- 3-pole industrial magnetic contactor
- Rated operational current: 18A
- 240VAC coil voltage operation
- Built-in 1NO + 1NC auxiliary contacts
- Compact Metasol MC series design
- Suitable for motor starters and control panels
- DIN rail and panel mounting support
- High mechanical and electrical durability
- Screw clamp terminal connection
- Reliable switching performance for industrial loads
- Compatible with thermal overload relays
- IEC 60947 compliant construction
| Specification | Details |
|---|---|
| Brand | LS ELECTRIC |
| Model | MC-18B-A240 |
| Product Type | Magnetic Contactor |
| Series | Metasol MC Type |
| Number of Poles | 3 Pole |
| Main Contacts | 3NO |
| Auxiliary Contacts | 1NO + 1NC (1A1B) |
| Rated Operational Current | 18A |
| Coil Voltage | 240VAC |
| Rated Operational Voltage (Ue) | Up to 690VAC |
| Rated Insulation Voltage (Ui) | 690V |
| Rated Impulse Voltage (Uimp) | 6kV |
| Motor Power Rating | Up to 7.5kW |
| Mounting Type | DIN Rail / Panel Mount |
| Terminal Type | Screw Clamp |
| Protection Class | IP20 |
| Operating Temperature | -5°C to +60°C |
| Dimensions | Approx. 45 × 73.5 × 80 mm |
| Standards | IEC 60947-4-1, UL508 |
| Applications | Motor Control, HVAC, Pumps, Automation Panels |
