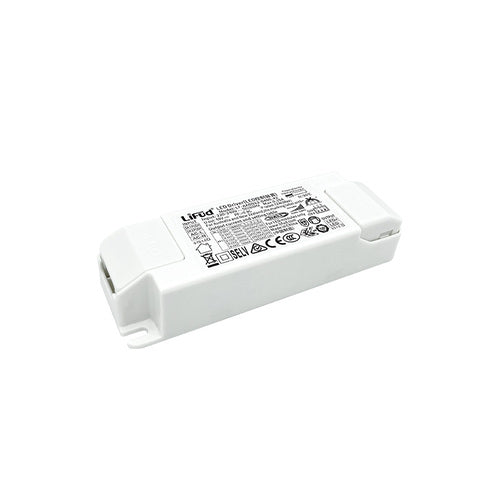

Lifud Constant Current LF-AAD020-0500-42 DALI-2 0.1% Dimming Depth Series Driver

Lifud Constant Current LF-AAD020-0500-42 DALI-2 0.1% Dimming Depth Series Driver

SKU SKU:LF-AAD020-0500-42

Regular price $21.00 USD
Regular price $23.00 USD Sale price $21.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Technical Details:

Datasheet for LF-AAD020-0500-42

DALI-2 DT6 0.1% Dimming Depth LED Driver Series

Model

LF-AADxxx

Parameters

Operating voltage: 220-240Vac; 180-280Vdc

Output power: 1-40W

Operating voltage limit: 198-264Vac

Features

1. Supports DALI or PUSH dimming

2. The logarithmic dimming curve or the linear dimming curve is selectable

3. Adjustable output current via a DIP switch, in steps of 50mA

4. Flicker free

5. 0%-100%dimming range; 0.1% dimming depth

6. Suitable for Class II light fixtures

7. Good consistency of dimming, and the current tolerance of different pcs of LED driver is less than 3%

Warranty

5 years

Certifications

DALI-2, ENEC, CE, CB, RCM and CCC

Applications

Indoor office lighting, decorative lighting, commercial lighting, residential lighting

Model Output Power Input Voltage Output Voltage Output Current Efficiency
(full load)
PF (full load) Dimension (L*W*H)
LF-AAD008-0350-42 8 W 220-240 Vac 9-42 Vdc 100-350 mA 76% (230Vac) 0.90 (230Vac) 142.1*29.5*25.5 mm
LF-AAD008-0700-12 8 W 220-240 Vac 2-12 Vdc 350-700 mA 76% (230Vac) 0.90 (230Vac) 142.1*29.5*25.5 mm
LF-AAD012-0400-42 12 W 220-240 Vac 9-42 Vdc 150-400 mA 82% (230Vac) 0.90 (230Vac) 121.9*39.9*25 mm
LF-AAD020-0500-42 20 W 220-240 Vac 9-42 Vdc 250-500 mA 85% (230Vac) 0.95 (230Vac) 121.9*39.9*25 mm
LF-AAD030-0750-42 30 W 220-240 Vac 9-42 Vdc 400-750 mA 85% (230Vac) 0.95 (230Vac) 141.5*46*27.5 mm
LF-AAD040-1050-42 40 W 220-240 Vac 9-42 Vdc 550-1050 mA 87% (230Vac) 0.95 (230Vac) 141.5*46*27.5 mm
