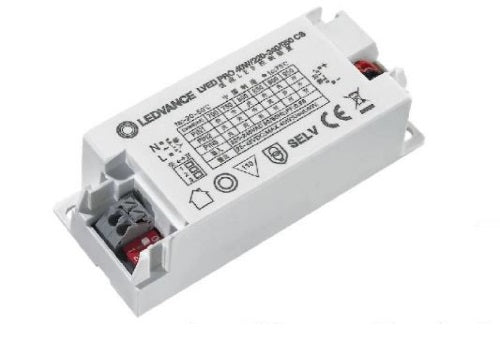

LEDVANCE LVED PRO 40W/220-240/950 CS LED DRIVER

Datasheet:

Ex stock subjet to prior sales

Description:

Areas of application

− Suitable for indoor SELV installations
− Suitable for LED luminaires and LED modules
− Suitable for build-in luminaries with adjustable current setting
− Suitable for luminaires of protection class II
− Hotels, shops, hospitality, residential interiors
− Offices
− Suitable for indoor applications

Product benefits:

-High flexibility due to adjustable output currents via dip switch
− Small housing for flexible luminaire designs
− High quality of light thanks to low output ripple current

Product features:

Lifetime: up to 50,000 h (at max. tc temperature)
− Low ripple current < 4 %
− Power factor: 0.95
− Protection class II
− High reliability thanks to long lifetime
− Safety according to IEC/EN 61347-1, IEC/EN 61347-2-13, GB 19510.1, GB 19510.14
− EMC immunity according to CISPR15/EN 55015, IEC/ EN 61547, IEC/EN61000-3-2, GB/T17743, GB 17625.1
− Performance according to IEC 62384
− With CCC, CE, CB certificate
− RoHS compliant

TECHNICAL DATA:

Electrical data:
Nominal wattage 46.00 W
Nominal output power 45 W
Nominal voltage 220…240 V
Nominal output voltage 25…42 V
Input voltage AC 198…264 V
Nominal current 250 mA

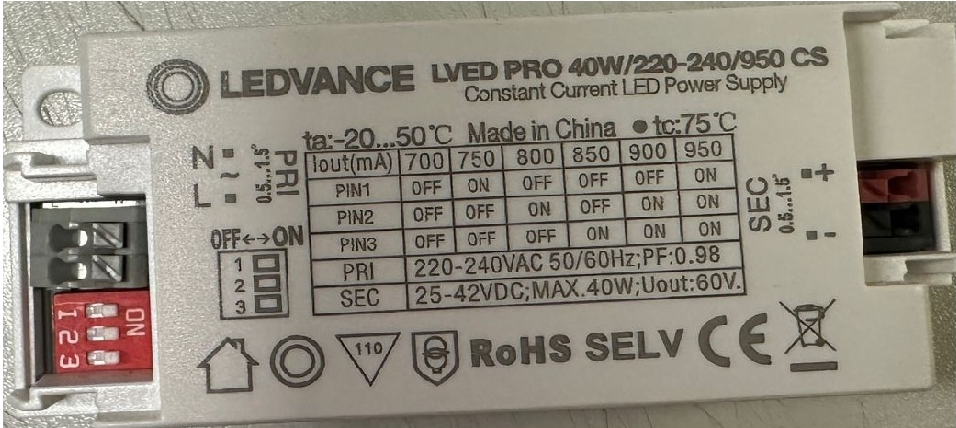

Nominal output current 700 mA / 750 mA / 800 mA / 850 mA / 900 mA / 950 mA 1)
Inrush current 30 A
Output current tolerance ±5 %
Mains frequency 50…60 Hz
Total harmonic distortion 10 %
Power factor λ 0.98
ECG efficiency 90 % 2)
Galvanic isolation SELV
Operating frequency 50/60 Hz

Type of protection IP20

Dimmable No
