Datasheet
Included with

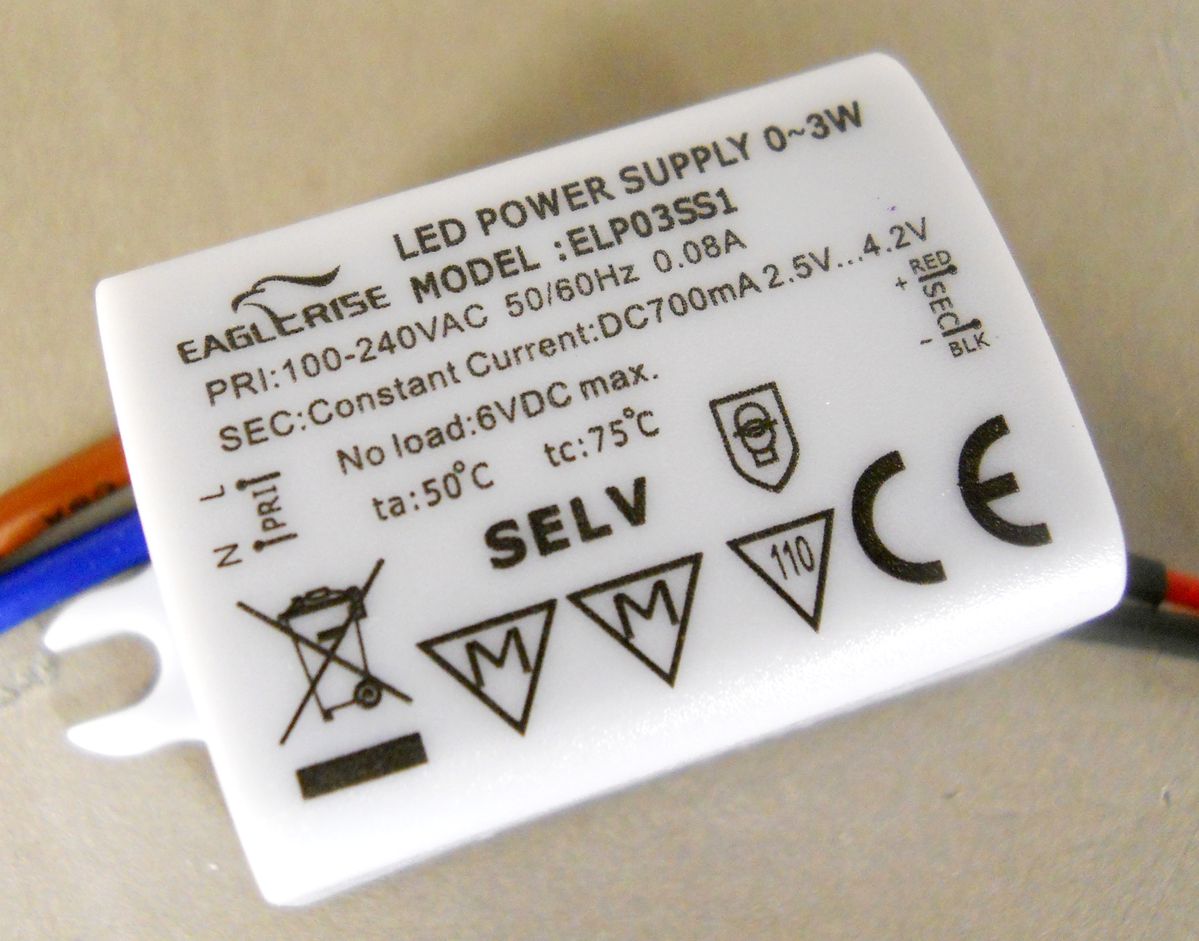

EGR ELP03SS1
100-240VAC 50/60Hz constant current
2.5V...4.2V max 6V / 700mA / 0-3W
35x25 Ht21mm
Can be used in Shallow pond. Shallow pond depth should be 0.5meter

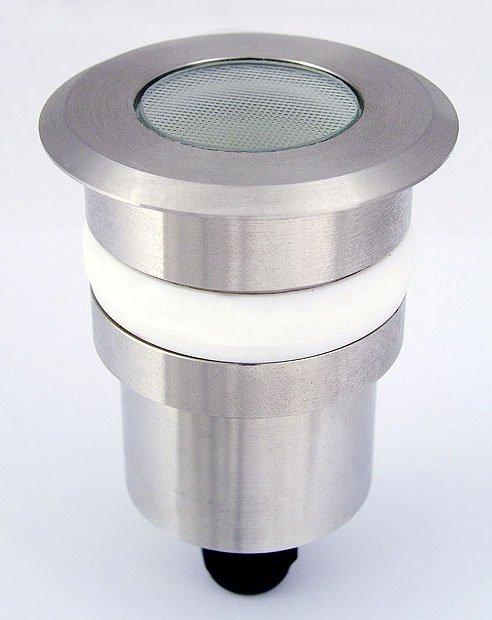

Model: HIG 8320 SS316
ET 8320 SS

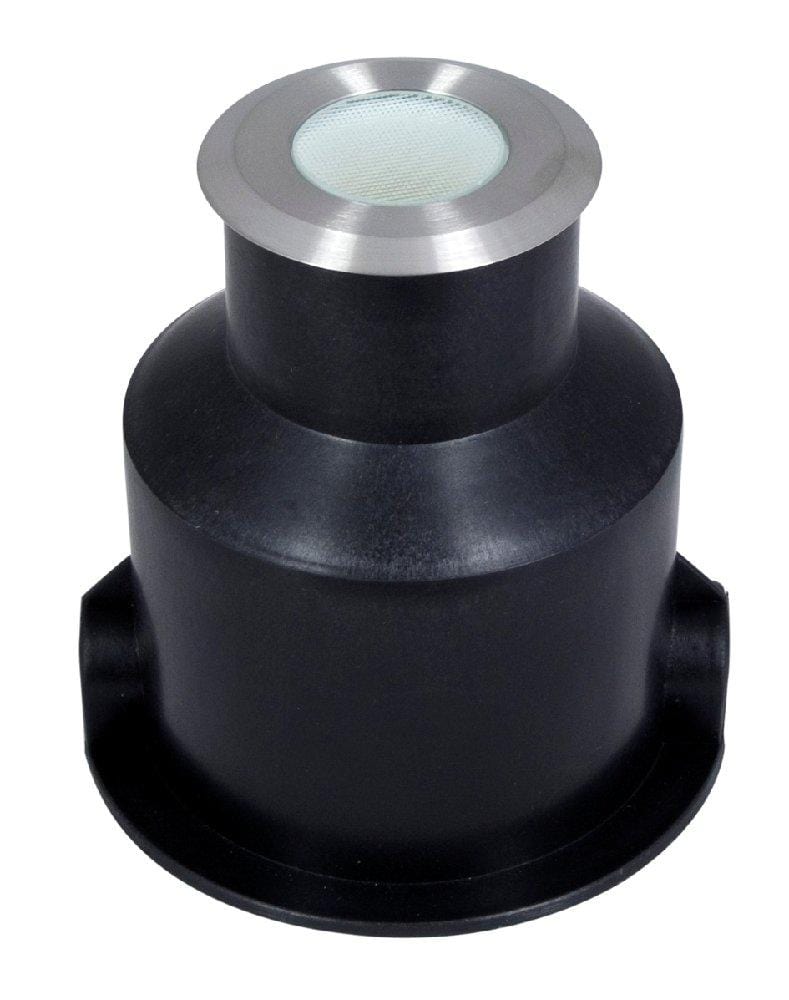

Buried Light w/recessed box
Dia56mm w/Dia100mm Ht102mm base
c/w 3W 3000K LED
without remote driver
Eco-friendly LED technology along with energy savings and free of maintenance.
Application

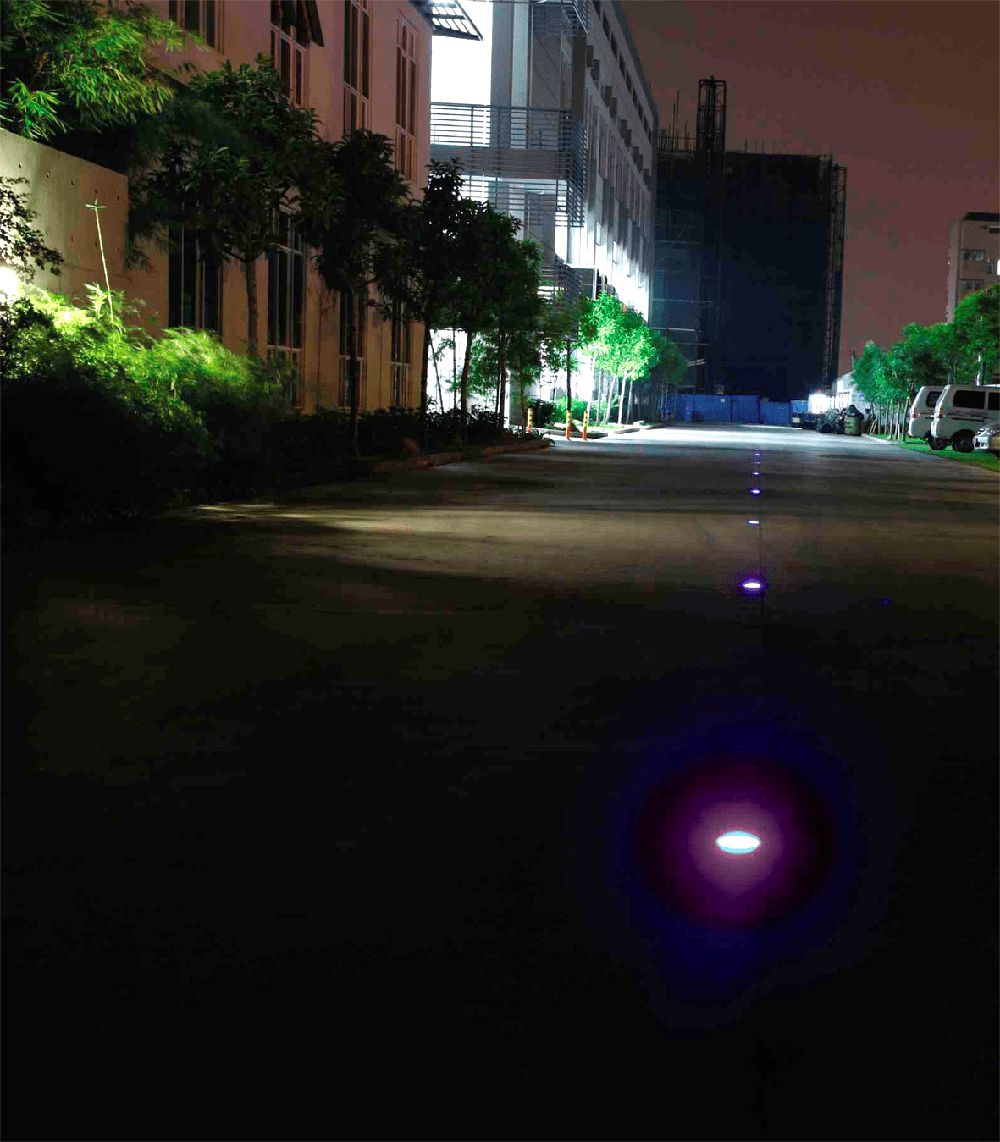

Decorative or guide lighting in halls, foyers, corridor, hallway, garden, park and commercial applications. Stainless steel 316 body and top plate will not corrode in any outdoor location.
Construction
Stainless steel 316 body with PP recessed housing. Hardened frosted or clear glass cover.
Beam angle
Standard wide beam with frosted glass cover.
On request beam angles of 15, 25 and 35 deg. With clear cover.
Lamp
1 x 1.2W TS Osram GP LED, 350mA
1 x 2W Philips Rebel Es, 500mA
1 x 3W Philips Rebel Es, 700mA
Color
2700K or 3000K
Comes with driver. Remote mounted in dry area. Connection one driver to one light or one driver to up to 6 to 12 lights in series connection.
