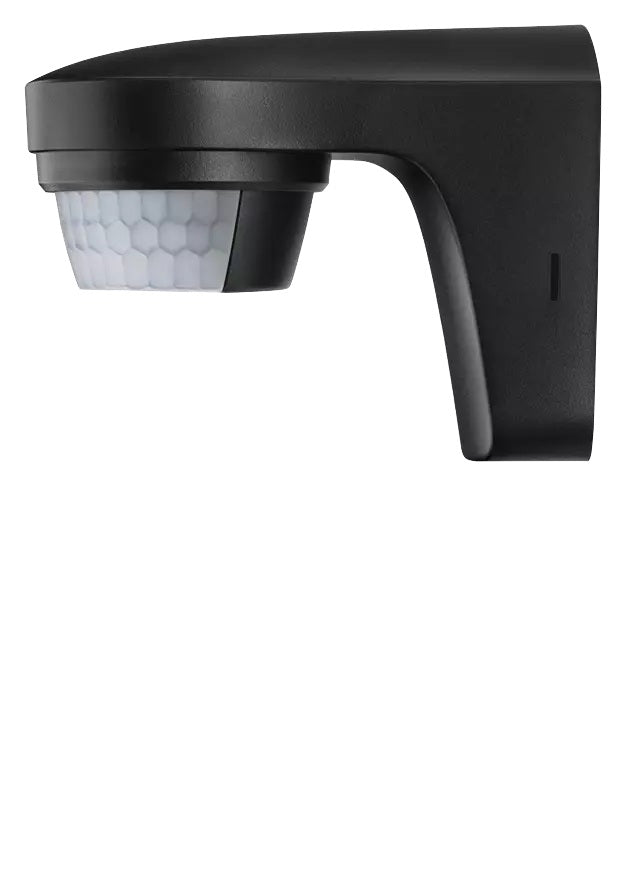

Theben The Luxa S180 250W Motion Detector Wall Mount 230V

Theben The Luxa S180 250W Motion Detector Wall Mount 230V

SKU S180WH

$ 86.00 SGD
$ 87.00 SGD $ 86.00 SGD
Sale Sold out
Shipping calculated at checkout.
Color

Request For Quote

Technical Details:

**Lead Time 1 Week**

Functional Description:

  • Passive infra-red motion detector
  • For outdoor use
  • Additional creep under protection
  • Sensor head can be turned by ± 90° horizontally and by 30° downwards
  • Adjustable brightness switching value and switch-off delay
  • Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs
  • Zero-cross switching for relay-saving switching and high lamp loads
  • Teach-in of current brightness value possible
  • Pulse function
  • Test function for checking detection area
  • Installation on flush-mounted socket possible (60 mm)
  • Single-handed plug-in installation
  • Instant start-up possible via factory preset
  • Controls are place protected
  • Terminal for protective earth conductor

Technical Data:

Operating voltage 230 V AC
Frequency 50 Hz
Stand-by consumption ~0.9 W
Light measurement Mixed light measurement
Number of channels 1
Colour Black (similar RAL 9005)
Installation type Wall installation, Outdoor
Setting range brightness 5 lx - 1000 lx
Switching capacity 10 A at 230 V AC, cos φ = 1, 6 A at 230 V AC, cos φ = 0.6, 3 AX at 230 V AC, cos φ = 0.3
Detection angle 180°
Installation height 2 - 4 m
Switching output Light
Light switch-off delay  1 s - 20 min
Incandescent/halogen lamp load 2300 W
Fluorescent lamp load (conventional) not corrected 2300 VA
Fluorescent lamp load (conventional) parallel-corrected 1200 VA 120 µF
Fluorescent lamp load (conventional) series-corrected 2300 VA
Fluorescent lamp load (electronic ballast) 1000 W
Energy saving lamps 250 W
Inrush current max. 300 A / 200 µs
LED lamp < 2 W 50 W
LED lamp 2-8 W 500 W
LED lamp > 8 W 500 W
Lamp types Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Detection range Semicircular, Semicircular, Semicircular, Semicircular, Semicircular, Semicircular, Semicircular, Semicircular, Semicircular, Semicircular
Remote Controlled
Ambient temperature -25°C ... 45°C
Impact resistance IK04
Protection class II
Type of protection IP 55
