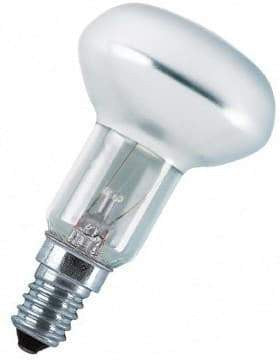

Osram Concentra Spot R50 Dimmable
Osram Concentra Spot R50 Dimmable
SKU SKU:4052899180482
Regular price
$ 3.20 SGD
Regular price
$ 3.42 SGD
Sale price
$ 3.20 SGD
Unit price
/
per
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Share
Electrical data
| Nominal wattage | 40.00 W |
|---|---|
| Nominal voltage | 230 V |
| Rated wattage | 40.00 W |
| Power factor λ | 1.00 |
Photometrical data
| Luminous intensity [PIM] | 410 cd |
|---|---|
| Nominal useful luminous flux 90° | 190 lm |
| Rated color temperature | 2700 K |
| Color temperature | 2700 K |
| Luminous flux | 190 lm |
| Color rendering index Ra | 100 |
| Rated useful luminous flux 90° | 190 lm |
| Rated peak intensity | 410 cd |
Light technical data
| Beam angle | 30 ° |
|---|---|
| Starting time | 0.0 s |
| Warm-up time (60 %) | 0.00 s |
| Nominal beam angle | 30 ° |
| Rated beam angle (half peak value) | 30.00 ° |
Dimensions & weight
| Diameter | 50.0 mm |
|---|---|
| Overall length | 87.0 mm |
| Mounting length | 63.0 mm |
| Outer bulb | R50G |
| Length | 87.0 mm |
| Maximum diameter | 51.0 mm |
Lifespan
| Nominal lamp life time | 1000 h |
|---|---|
| Number of switching cycles | 25000 |
| Rated lamp life time | 1000 h |
Additional product data
| Base (standard designation) | E14 |
|---|---|
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Product remark | Banned from 1.9.2014 as per EU phase-out plan |
Capabilities
| Dimmable | Yes |
|---|
Certificates & standards
| Energy efficiency class | E |
|---|---|
| Energy efficiency class | E |
| Energy consumption | 40 kWh/1000h |
Country-specific categorizations
| ILCOS | IRR-40-230-E14-50/30 |
|---|
