MEGAMAN MQTL119-Y-18W-R175 V2 Classic Downlight
MEGAMAN MQTL119-Y-18W-R175 V2 Classic Downlight
SKU SKU:6974599541425
Regular price
$ 20.80 SGD
Regular price
$ 21.00 SGD
Sale price
$ 20.80 SGD
Unit price
/
per
Shipping calculated at checkout.
483 in stock
Couldn't load pickup availability
Share
Technical Details
Details:
- High system efficacy up to 90lm/W
- Light Without flicker reduces stress while working/living underneath

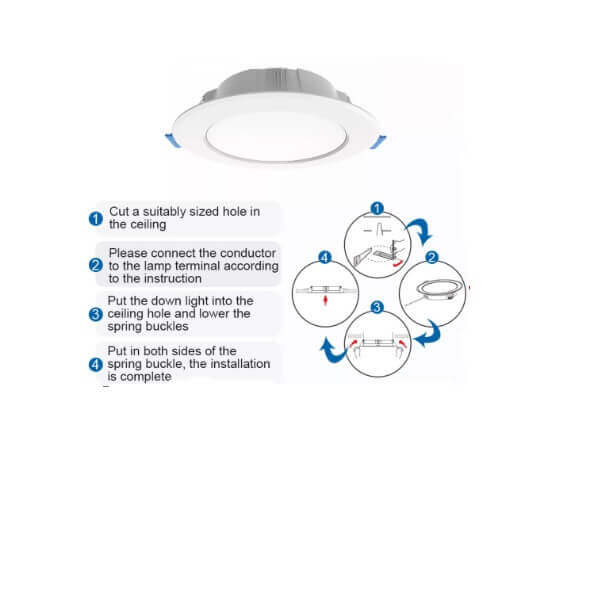

- Driver on board in a compact size ensure 1 step plug and play installation.
- Up to 50% energy saving compared to conventional downlight.
Models:
MQTL1119-Y-18W-R175-3000K V2
MQTL1119-Y-18W-R175-4000K V2
MQTL1119-Y-18W-R175-6500K V2
| Technical Specifications | |
| CRI |
80 |
| Beam Angle (˚) | 110 |
| Colour Consistency (SDCM) | <6 |
| Color Temperature | 3000K / 4000 K / 6000K |
| Lumen | 1800lm |
| Housing color |
White |
| CRI(Ra) | >80 |
| Dimmable | No |
| Electrical parameters | |
| Input voltage range(VAC) | 220 V - 240 V |
| Input frequency(Hz) | 50/60 Hz |
| AC/DC | AC |
| IP | IP20 |
| IK | IK02 |
| Driver integrated (Yes/No) | Yes |
| Rated Wattage(W)(Ta 25℃) | 18W |
| Glow wire test | 650˚C |
| Dimmable |
No |
| Weight (pc/kg) | 0.216/0.397/0.574 |
| Driver failure rate | 1% at 5000h |
| Mechanical Properties | |
| Housing Material | PC |
| Optical Material | PP |
| Application Conditions | |
| Operating Temperature | -20~40˚C |
| Application Temperature | 20˚C |
| Storage Environment | -20~50˚C |
