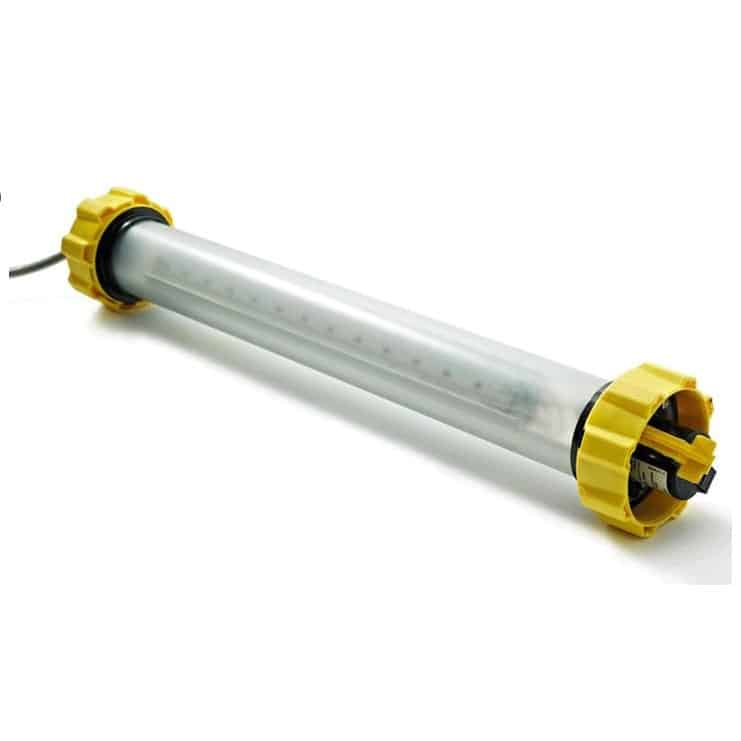

WOLFLITE LX-400SH/T4/SY20/ATX110 LinkEx LED Temporary Luminaire 110V fitted with 20m SY cable and ATX plug, (T4, 55'C)

WOLFLITE LX-400SH/T4/SY20/ATX110 LinkEx LED Temporary Luminaire 110V fitted with 20m SY cable and ATX plug, (T4, 55'C)

SKU LX-400SH/T4/SY20/ATX110

PDF Datasheet

PDF Datasheet 2

$ 4,832.00 SGD
$ 4,832.00 SGD
Jualan Habis dijual
Penghantaran dikira semasa pembayaran.

Request For Quote

Technical Information

Product Reference LX-400
Product Description LinkEx LED ATEX Temporary Luminaire
T4 Low (LV) & High (HV)  Voltage
Code

Non-Linkable:
II 2 GD Ex eb mb IIC T4 Gb (-20°C to +55°C)
Ex tb IIIC T135°C Db IP67

Linkable*:
II 2 GD Ex eb mb IIC T4 Gb (-20°C to +55°C)
Ex tb IIIC T135°C Db IP66*
Type of Protection "eb" increased safety, "mb" encapsulation, "tb" enclosure
Area of Classification (Gas) Zones 1 & 2, Gas Groups IIA, IIB, IIC
Temperature Class T4
Area of Classification (Dust) Zones 21 & 22
Max Surface Temp (Dust) 135°C
Ambient Temperature -20°C to +55°C (+45°C with LX-621 Protective Cover fitted)
Certificate

CML 18ATEX3371X

IECEx CML 18.0197X
Enclosure and Lens Polycarbonate with Anti-static Coating
Beam Type Wide Angle, Diffused Area Light (180° or 360°)
Light Source: Type LED
Life Over 60,000 hrs
Power 24VAC ≈27W (42VA) 48VAC ≈27W (51VA) HV ≈ 26W
Output 4,000 lm (at source)
Input Voltage

LV 18-50V AC/DC

HV 90-264V AC
Weight (Non-linkable) 3.0kg without cable
Length (Non-Linkable) 0.7m
Ingress Protection Non-Linkable (No Socket) IP67 / Linkable (Socket Fitted) IP66*
Included Supplied with lens protecting film (LX-545), protection cover kit (LX-621) and hanging straps (LX-654)
