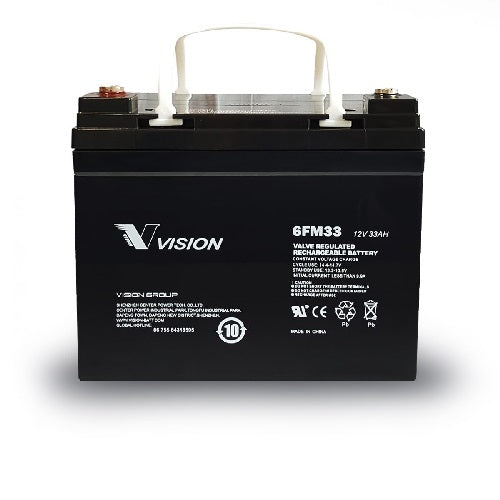

Vision 6FM33X (12V 33Ah) Battery

Datasheet:

Description:

The rechargeable batteries are ead-ead dioxide systems. The diute sufuric acid eectroyte is absorbed by separators and plates and thus immobilized. Should the battery be accidentally overcharged producing hydrogen and oxygen, special oneway valves allow the gases to escape thus avoiding excessive pressure build-up. Otherwise, the battery is completely sealed and is, therefore, maintenance-free, leak proof and usable in any position.

Genaral Features:

Positive and negative plates in lead-calcium-tin alloy;
Stable Quality&High Reliability;
Sealed Construcrion;
Long Service Life;
Maintenance-Free Operation;
Low Pressure Venting System;
Low Self Discharge;
U.L.Component Recognition;
Six months shelf life at 20℃;
Design life 10 years

Characteristic:

• Nominal Voltage : 12V
• Number of cell : 6
• Desing life : 10years
• Nominal Capacity : 10Hr-33.0Ah, 5Hr-27.9Ah, 1Hr-22.3Ah

Dimensions and Weight

Length(mm / inch) 195 / 7.68
Width(mm / inch) 130 / 5.12
Height(mm / inch) 155 / 6.10
Total Height(mm / inch) 168 / 6.61
Approx. Weight(Kg / lbs) 11.0 / 24.3
