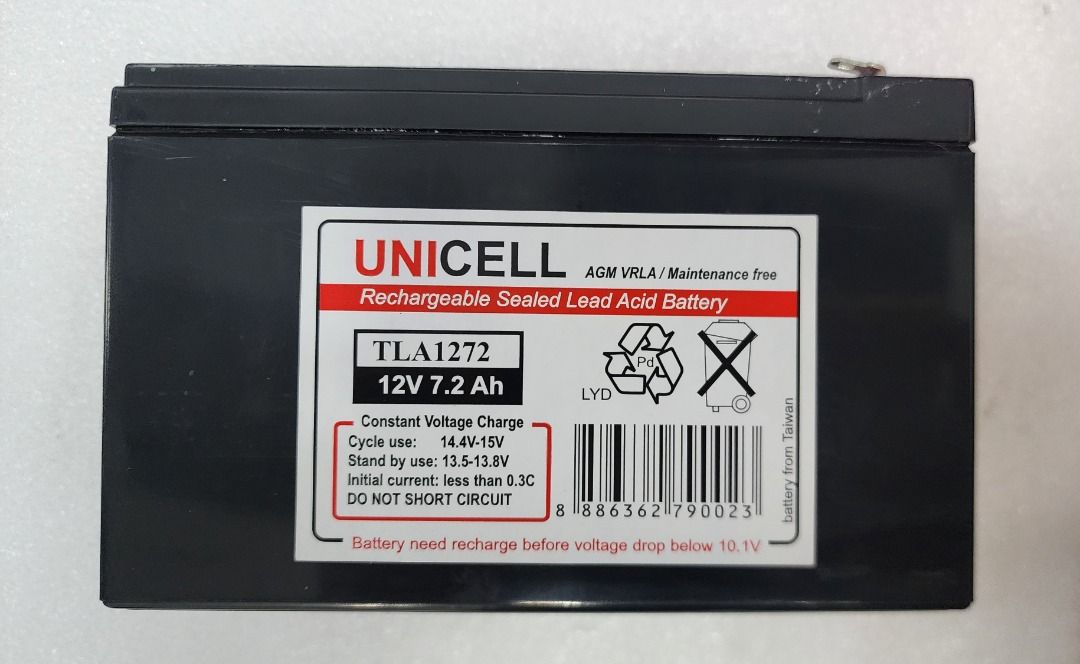

Unicell 12V Taiwan battery

Unicell 12V Taiwan battery

TLA1272

$ 38.00 SGD
$ 38.00 SGD
Jualan Habis dijual
Penghantaran dikira semasa pembayaran.
ampere hour

Request For Quote

Delivery

Singapore

1-3 work days ( 90% of Shipments)

For items that are stocked outside Singapore, it takes 7 - 14 work days.

International

7-14 work days.

Pick FEDEX at checkout for reliable and Fast Deliveries.

Taxes

Singapore

GST Not Applicable - Prices displayed are final prices.

International

As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.

Lembaran data

cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895

We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !

Specifications
  • Cells Per Unit: 6
  • Voltage Per Unit: 12 V
  • Capacity: 7.2 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)
  • Weight (kg): Approx. 2.40kg. (5.29 lbs.)
  • Maximum Discharge current (A): 100A/130A (5sec.)
  • Internal Resistance Approx.: Approx. 23mΩ
  • Operating Temperature Range:
    - Discharge：-15℃~50℃(5°F~122°F)
    - Charge：-15℃~40℃(5°F~104°F)
    - Storage：-15℃~40℃(5°F~104°F)
  • Nominal Operating Temperature Range: 25°C ± 3°C (77°F ± 5°F)
  • Float charging voltage: 13.5 to 13.8 VDC/unit Average at 25°C (77°F)
  • Recommended Maximum Charging current limit: 2.16A
  • Equalization and Cycle Service: 14.4 to 15.0 VDC/unit Average at 25°C (77°F)
  • Self Discharge: CSB Batteries can be stored for more than 6 months at 25°C (77°F)
    Please charge batteries before using. For higher temperatures the time interval will be shorter.
  • Terminal: F2 Faston Tab/ .250"
  • Container Material: ABS(UL94-HB/File E50263)*Flammability resistance of(UL94-V0/File E88637) can be available upon request.
  • Size: L151 x W65 x H93/HT101 mm
