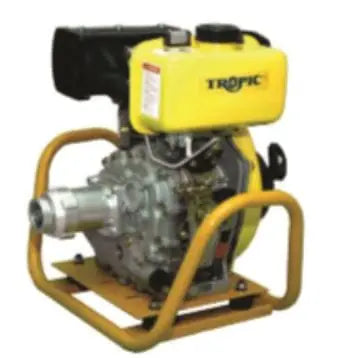

Tropic TEV-T40BC Concrete Diesel Vibrator | Model : CV-TEVT40BC

Tropic TEV-T40BC Concrete Diesel Vibrator | Model : CV-TEVT40BC

CV-TEVT40BC

$ 366.24 SGD
$ 366.24 SGD
Jualan Habis dijual
Penghantaran dikira semasa pembayaran.

Request For Quote

Delivery

Singapore

1-3 work days ( 90% of Shipments)

For items that are stocked outside Singapore, it takes 7 - 14 work days.

International

7-14 work days.

Pick FEDEX at checkout for reliable and Fast Deliveries.

Taxes

Singapore

GST Not Applicable - Prices displayed are final prices.

International

As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.

Lembaran data

cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895

We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !

Tropic TEV-T40BC Concrete Diesel Vibrator | Model : CV-TEVT40BC Specifications :   Engine Model : 170F Type : Single - Cylinder, vertical, 4-stroke, air cooled , direct- injection Bore x stroke : 70 x 55 mm Displacement : 0.211 L Normal Speed :  3000 r/min 3600 r/min Normal power :  3.4 kW 3.8 kW Mean Speed of piston :  5.5 m/s 6.6 m/s Mean effective pressure : 443.2 (4.52) kgf/cm2 430.9 (4.4) kgf/cm2 Consumption rate of fuel : < 287 (211) g/kW (g/PS.h) < 299.2 (220) g/kW (g/PS.h) Consumption rate of machine : < 4.08 (3) g/kW . 4.08(3) oil Fuel tank Capacity  : 2.5 L Lub Oil : 0.75 L Effective : 0.25 L Rotary direction of crankshaft : Clockwise from flywheel end Cooling type : Forced air - cooled system Lub. Type : Pressure, splash Starting type : Recoil manual start and optional electric start Net weight : 26 kg
