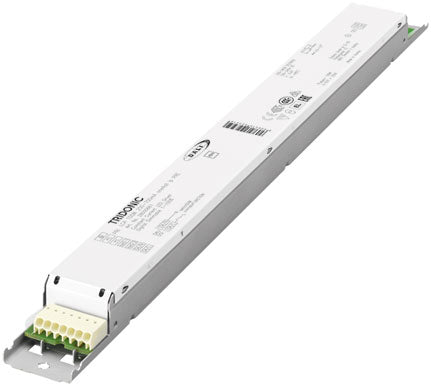

Tridonic LCA 100W 250-700mA one4all lp PRE Driver

https://resources.tridonic.com/PDB/Ressource/GroupPdf/en/Driver_LCA_100W_250_700mA_one4all_lp_PRE_22212.pdf

Product description:

_ NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
_ Dimmable built-in constant current LED driver
_ Dimming range 1 to 100 %
_ For luminaires of protection class I and protection class II
_ Output current adjustable between 250 – 700 mA via
ready2mains Programmer, I-SELECT 2 plugs or DALI
_ Max. output power 100 W
_ Up to 93 % efficiency
_ Power input on stand-by < 0.15 W
_ Nominal lifetime up to 100,000 h
_ 5 years guarantee

Housing properties:
_ Low profile metal casing with white cover
_ Type of protection IP20

Interfaces:
_ one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
_ ready2mains (configuration and dimming via mains)
_ Terminal blocks: 0° push terminals
