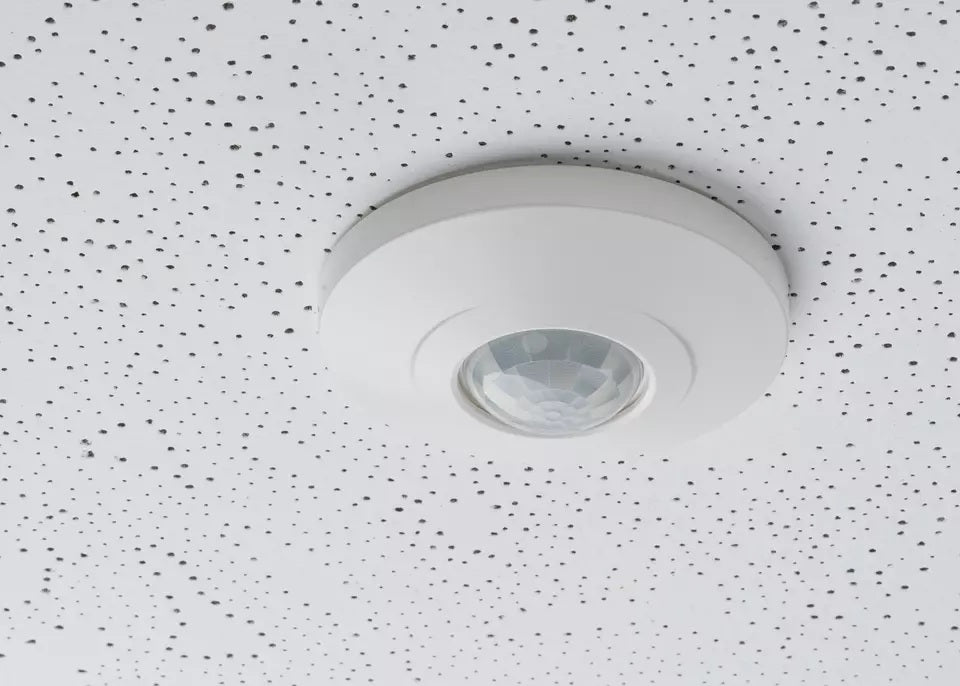

Theben Luxa 103-100 UA WH IP40 Surface Mounting Motion Detector

Theben Luxa 103-100 UA WH IP40 Surface Mounting Motion Detector

SKU LUXA 103-100 UA WH

$ 132.00 SGD
$ 144.00 SGD $ 132.00 SGD
Jualan Habis dijual
Penghantaran dikira semasa pembayaran.

Request For Quote

Technical Details:

**Lead Time 1 Week**

Functional Description:

  • Passive infra-red motion detector
  • Circular detection area 360°, up to Ø 12 m (113 m2) at mounting height 3 m
  • 1 channel light (Relay, 230 V) with acoustic function
  • Activation by the PIR sensor and deactivation by the microphone (microphone can also be deactivated)
  • Flexible installation options, ceiling installation using clamping brackets as well as flush-mounted or surface mounting using the optional surface frame
  • Mixed light measurement suitable for the control of fluorescent, incandescent and halogen lamps
  • Zero-cross switching
  • Detection area can be limited using three enclosed segments
  • Instant start-up possible via factory preset
  • No unintentional adjustment due to covered up controls
  • Adjustable brightness switching value and switch-off delay
  • Sensitivity can be reduced to limit detection area
  • Pulse function
  • Test function

Technical Data:

Operating voltage 230 V AC
Frequency 50 - 60 Hz
Stand-by consumption ~0.5 W
Light measurement Mixed light measurement
Number of channels 1
Colour White
Installation type Ceiling installation, Indoor
Setting range brightness 10 lx - 2000 lx
Detection angle 360°
Installation height 2.5 - 3 m
Switching output Light
Light switch-off delay  5 s - 30 min
Incandescent/halogen lamp load 2000 W
Fluorescent lamp load (conventional) parallel-corrected 900 VA 100 µF
LED lamp < 2 W 35 W
LED lamp 2-8 W 400 W
LED lamp > 8 W 400 W
Lamp types Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Detection range 113 m² (ø 12 m | 360°)
Detection range Round
Remote controlled
Ambient temperature -20°C ... 45°C
Protection class II
Type of protection IP 40 (when fitted)
