Telemecanique Sensors

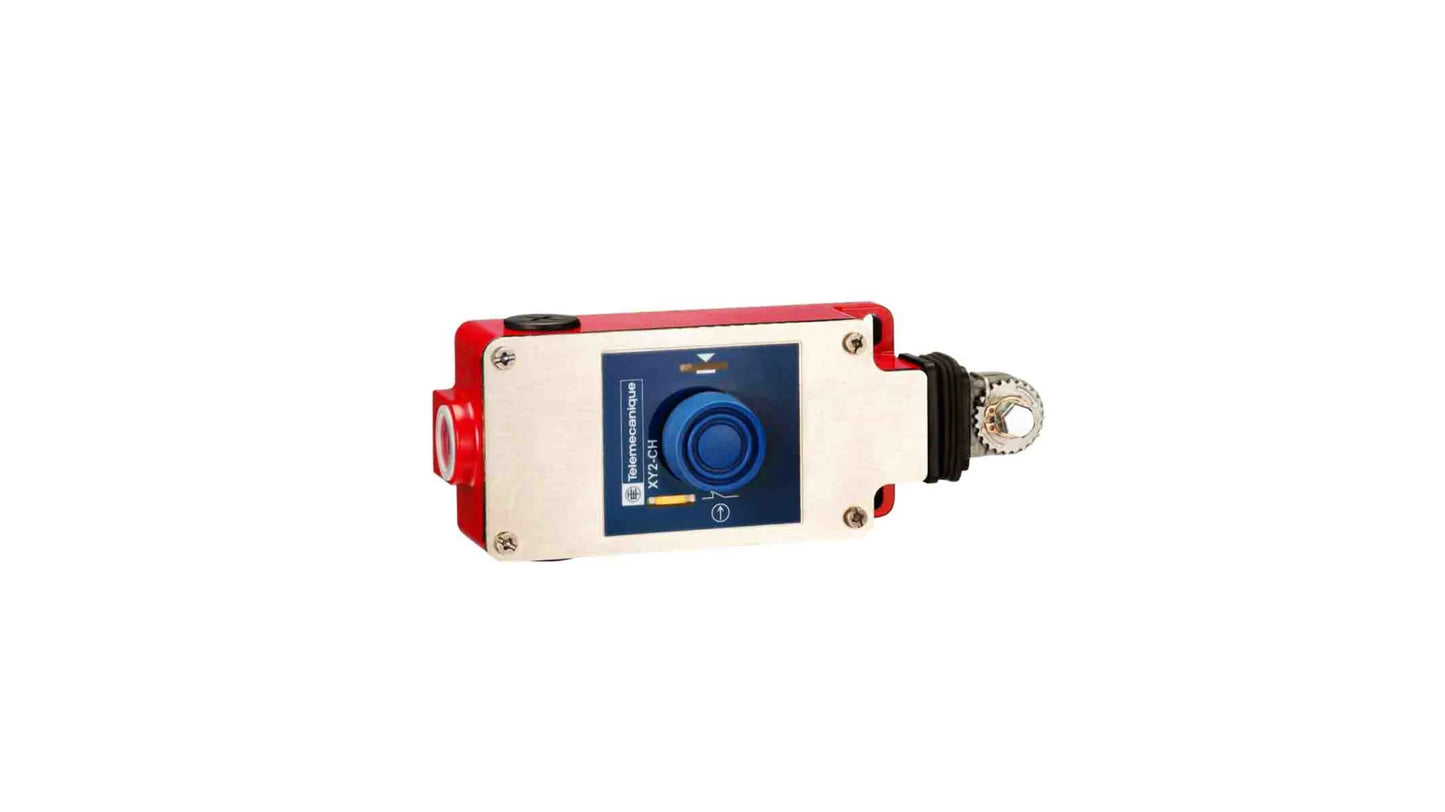

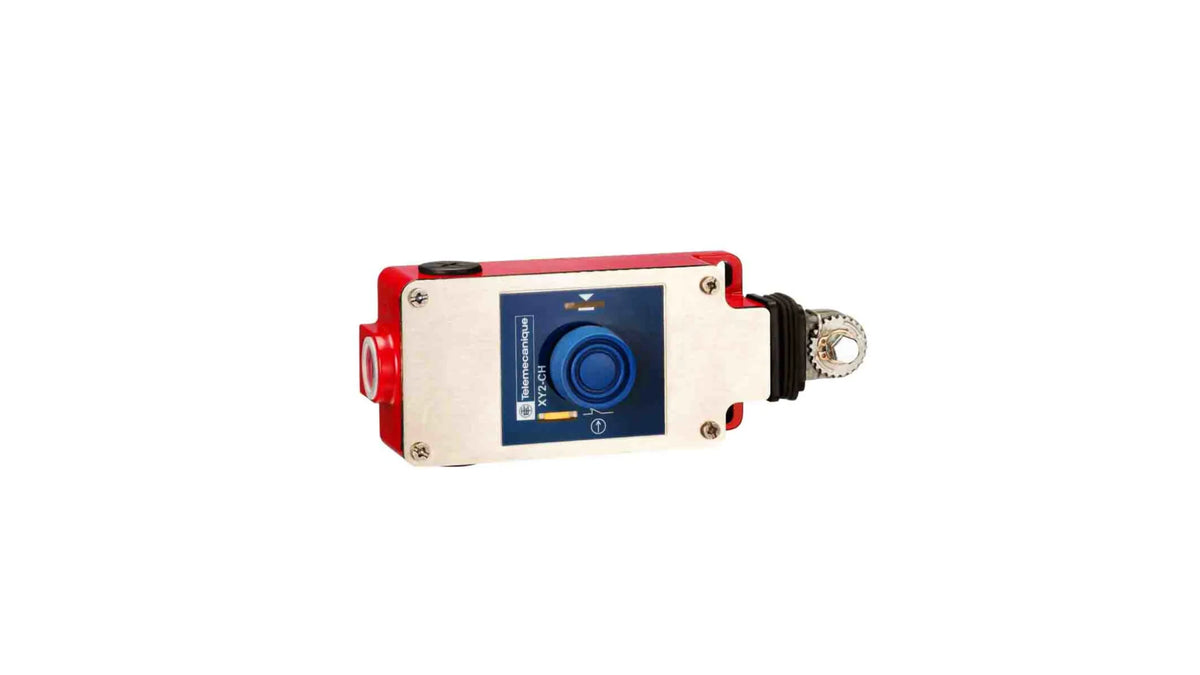

Telemecanique Sensors XY2CH Rope Pull Switch, 30m, NO/NC

Telemecanique Sensors XY2CH Rope Pull Switch, 30m, NO/NC

195-1897

$ 450.00 SGD
$ 450.00 SGD
Jualan Habis dijual
Penghantaran dikira semasa pembayaran.

Request For Quote
Attribute
Value
Normal State Configuration NO/NC
Cable Length 30m
IP Rating IP65
Number of Poles 2P
Series XY2CH
Range Preventa XY2
Length 201mm
Width 40mm
Depth 68mm
Housing Material Stainless Steel
Minimum Operating Temperature -25°C
Dimensions 201 x 40 x 68mm
Maximum DC Voltage 250V
Maximum Operating Temperature +70°C
Maximum AC Voltage 240V
Conduit Entry PG13.5
The Schneider Electric XY2CE series emergency stop rope pull switch has a 1 NC/1NO contact configuration. It has Zamak housing and maximum AC/DC voltage is 240VAC and 250VDC and the current rating of the switch is 3A and 270mA for AC and DC respectively. This switch has a rope span of 30m and the mounting orientation is to the left side or right side. Ambient air temperature for operation -25 to 70 °C IP degree of protection IP65
