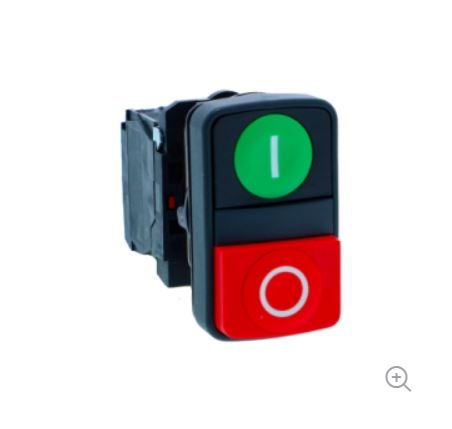

Schneider OMPLETE PLASTIC DOUBLE HEADED PUSHBUTTON 1NO + 1NC,

Main

Range of product : Harmony XB5
Product or component type : Double-headed push-button
Device short name : XB5
Bezel material : Dark grey plastic
Fixing collar material : Plastic
Head type : Standard
Mounting diameter : 22 mm
Shape of signaling unit head : Rectangular
Type of operator : spring return
Operator profile : 1 flush - 1 projecting push-buttons
Operators description : Green ''I'' - red ''O''
Contacts type and composition : 1 NO + 1 NC
Contact operation : Slow-break
Connections - terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC
60947-1
Spring terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Spring terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Device presentation : Complete product
