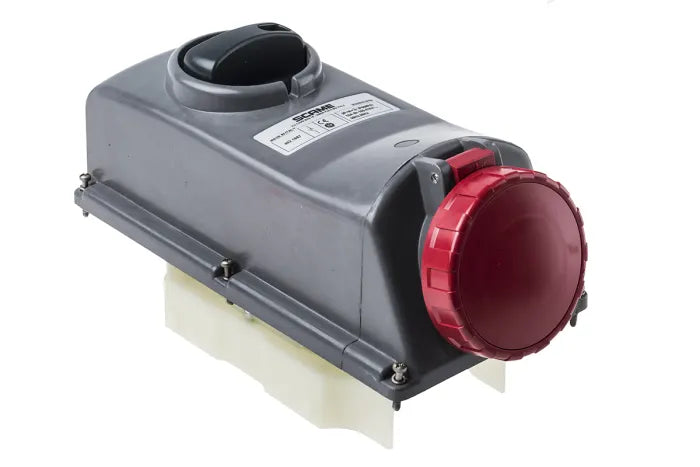

Scame IP67 Red Panel Mount 3P + N + E Right Angle Industrial Power Socket, Rated At 32A, 415 V

Scame IP67 Red Panel Mount 3P + N + E Right Angle Industrial Power Socket, Rated At 32A, 415 V

TECHDATA

Commercial series ADVANCE GRP Series
Type of product INTERLOCKED SOCKET
Synthetical description INTERLOCKED SOCKET
Rated current 32A
Poles 3P+N+E
Hour position 6h
Rated voltage (range) 250-400V
Rated voltage 346-415V
Working frequency 60Hz
Working frequency 50Hz
Colour RED
Material GRP Glass Reinforced
Polyester
Protection degree Watertight
Protection degree IP IP66/IP67/IP69
Protection degree IK IK10
Terminals Screw terminals
Flange 130X260MM
Working temperature -40°C/+60°C

GLOW WIRE GW 960°C
Self-extinguishing UL94 V0
Options With mechanical interlock
Notes WITHOUT FUSE HOLDER
Padlock ø5mm
