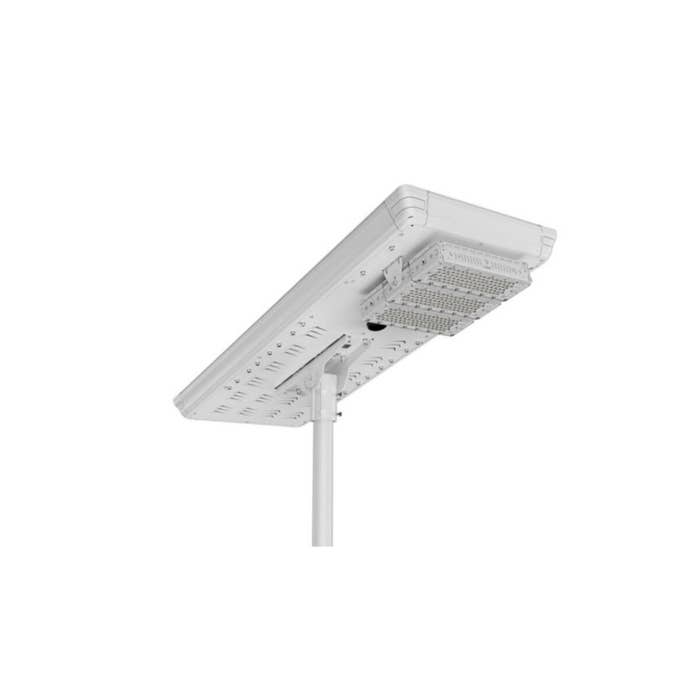

Philips SmartBright All-inone Solar Street Light BRP110 LED180/757 G2
Philips SmartBright All-inone Solar Street Light BRP110 LED180/757 G2
SKU SKU:911401834202
Harga biasa
$ 2,365.00 SGD
Harga biasa
$ 2,365.00 SGD
Harga jualan
$ 2,365.00 SGD
Harga seunit
/
per
Penghantaran dikira semasa pembayaran.
Stok rendah: 1 tinggal
Tidak dapat memuatkan ketersediaan pengambilan
Kongsi
BRP110 LED180/757 G2 (911401834202)
Leadtime: 7 To 9 Weeks
Specifications :
| GENERAL INFORMATION | |
| Driver Included | Yes |
| LIGHT TECHNICAL | |
| Luminous Flux | 18,000 lm |
| Correlated Color Temperature (Nom) | 5700 K |
| Luminous Efficacy (rated) (Nom) | 195 lm/W |
| Color Rendering Index (CRI) | >70 |
| OPERATING AND ELECTRICAL | |
| Battery Type | LiFePO4 |
| Battery Ampere Hour | 30 Ah |
| Battery Voltage | 25.6 V |
| Battery Charging & Discharging Cycles | 2000 |
| Panel Type | Mono crystalline |
| Panel Voltage | 34.5 V |
| Panel Peak Wattage | 125 W |
| Charge Controller Type | MPPT |
| Cable | - |
| Grid Connection Type | Off grid |
| CONTROLS AND DIMMING | |
| Dimmable | Yes |
| Configurability | Configurable |
| Control Interface | IR remote |
| Autonomy | 24 hour(s) |
| Solar Dimming Profile | First 2 Hrs - On motion : 100%, without motion :30% ; Next 3 Hrs - On motion : 60%, without motion :20% ; Next 6 Hrs On motion : 30%, without motion :10% ; Rest of the Night: On motion : 50%, without motion :30% |
| MECHANICAL AND HOUSING | |
| Housing Color | RAL7040 |
| Overall Length | 1,320 mm |
| Overall Width | 525 mm |
| Overall Height | 161 mm |
| Dimensions (Height X Width X Depth) | 161 x 525 x 1320 mm |
| Material | Aluminum |
| Battery Location | Inbuilt |
| Ingress Protection Code | IP65 [Dust penetration-protected, jet-proof] |
| Mech. Impact Protection Code | IK08 [6 J] |
| Optical Cover Type | Polycarbonate |
| Net Weight (Piece) | 28.100 kg |
| APPROVAL AND APPLICATION | |
| EU RoHS Compliant | Yes |
| Ambient Temperature Range | 0 to +50 °C |
| OVER TIME PERFORMANCE (IEC COMPLIANT) | |
| Median Useful Life L70B50 | 50,000 hour(s) |
| PRODUCT DATA | |
| Order Product Name | BRP110 LED180/757 G2 |
| Full Product Name | BRP110 LED180/757 G2 |
| Full Product Code | 6.92383E+14 |
| Order Code | 9.11402E+11 |
| Material Nr. (12NC) | 9.11402E+11 |
| Numerator - Quantity Per Pack | 1 |
| EAN/UPC - Product/Case | 6.92383E+12 |
| Numerator - Packs Per Outer Box | 1 |
| EAN/UPC - Case | 6.92383E+12 |
