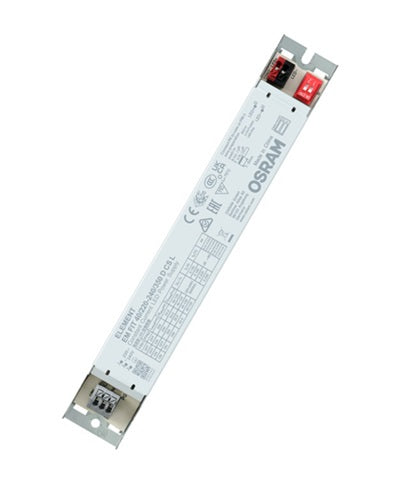

OSRAM ELEMENT 40 220-240 /350 D CS L Non Dimmable Constant Current

Datasheet:

Description:

Product family features:
- Line frequency: 50 Hz | 60 Hz
- Supply voltage: 220…240 V
-Lifetime: up to 50,000 h (temperature at Tc max. = -10 °C,  max 10% failure rate)
- Non-isolated drivers.

Product family benefits:
- Flexible current setting (DIPswitch – 4 currents)
- Small housing for flexible luminaire designs
- High efficiency (up to 94%)
- Enhanced safety due to overload, overtemperature, short-circuit protection.

Areas of application:
- Linear lighting for office, school and public areas
- Suitable for luminaires of protection class I.

Electrical data:
Nominal input voltage 220…240 V
Mains frequency 50/60 Hz
Input voltage AC 198…264 V
Input voltage DC not relevant
Current set DipSwitch
Total harmonic distortion < 20 %
Power factor λ 0.98 1)
Efficiency in full-load 93 % 2)
Device power loss 2.6 W 3)
Inrush current 18 A 4)

Certificates & standards:
Approval marks – approval CE / ENEC 05 / EAC / CCC / BIS / RCM
Standards Acc. to IEC 61347-1 / Acc. to IEC 61347-2-13 / Acc. to IEC 62384 / Acc. to
IEC 61000-3-2 / Acc. to IEC 61000-3-3 / Acc. to IEC 61547
Type of protection IP20
