NSF

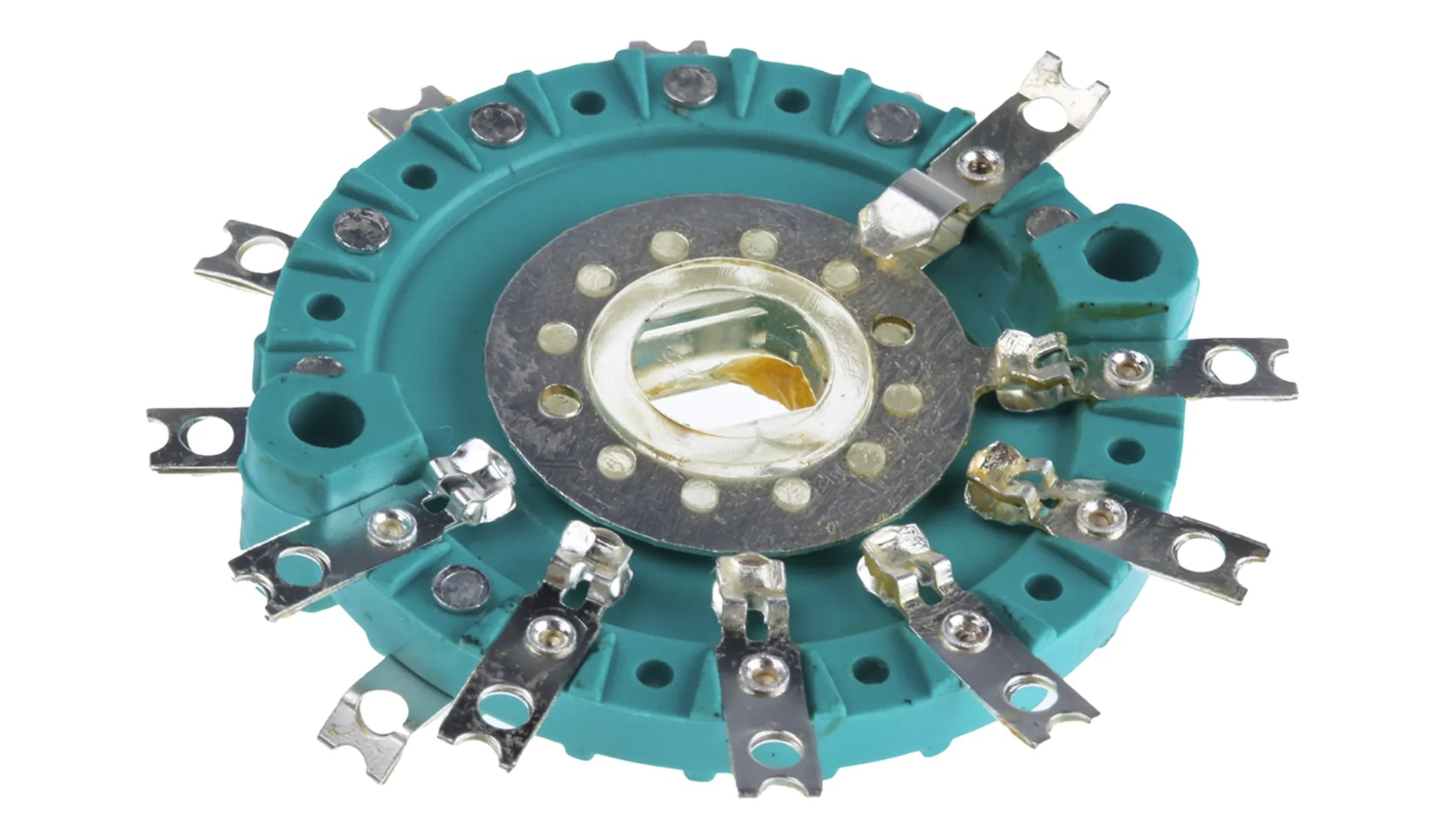

NSF Rotary Switch Wafer 6-Position

NSF Rotary Switch Wafer 6-Position

327-771

$ 126.00 SGD
$ 126.00 SGD
Jualan Habis dijual
Penghantaran dikira semasa pembayaran.

Request For Quote

Delivery

Singapore

1-3 work days ( 90% of Shipments)

For items that are stocked outside Singapore, it takes 7 - 14 work days.

International

7-14 work days.

Pick FEDEX at checkout for reliable and Fast Deliveries.

Taxes

Singapore

GST Not Applicable - Prices displayed are final prices.

International

As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.

Lembaran data

cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895

We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !

Attribute
Value
Diameter 32mm
Number of Switch Positions 6
Voltage Rating 300V ac/dc
Number of Contacts 2
Contact Configuration DP6T
Contact Current Rating 150 mA @ 250 V ac
Contact Material Silver Plated Brass
Contact Type Non-Shorting
Mounting Type Panel Mount
Terminal Type Solder
Mechanical Life 100000Operations
Standard Shaft Assembly & Wafers Standard Shaft Assembly Double-spring detent mechanisms in standard size Life expectancy >100000 detent operations 30° indexing and adjustable end stops Takes up to 10 standard wafers (the capacity is reduced if spacers and/or screens are used) 6mm diameter shaft and M10 x 0.75 mounting bushes Overall length 190mm, front shaft length 40mm Optional accessories are available for to suit individual requirements Wafers • 327-765 BBM • 327-771 BBM • 327-787 BBM • 327-793 BBM • 327-916 BBM • 327-822 MBB • 327-838 MBB • 327-844 MBB Glass-fibre loaded diallyl phthalate stators, polycarbonate rotors and silver-plated contacts Available in break before make (bbm), and make before break (mbb) versions 40mm diameter NoteFor the 6 mm mounting shaft assembly see stock number 327-894
