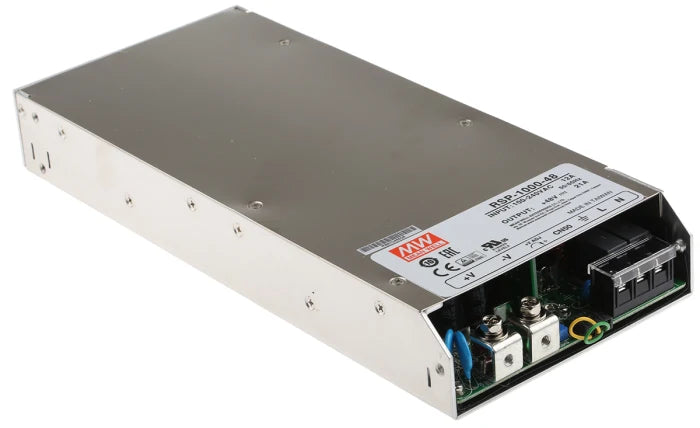

MEANWELL RSP-1000-48 48V dc, 21 A, 1 kW Switching Power Supply

Features

• Universal AC input / Full range
• Integrated active PFC function
• High efficiency up to 90%
• Forced air cooling with built-in DC fan
• Programmable output voltage
• Active current sharing up to 4000W (3+1)
• Built-in remote ON/OFF control, remote sense, auxiliary power, and DC OK signal
• Protection functions: Short circuit, overload, over voltage, and over temperature
• Optional conformal coating available
• 5-year warranty

Applications

• Factory control and automation equipment
• Testing and measurement instruments
• Laser-related machinery
• Burn-in systems
• RF applications

Description

RSP-1000 is a 1KW single-output enclosed AC/DC power supply designed with a 1U low-profile structure. This series supports 90~264VAC input voltage and provides commonly used DC output models for industrial applications. Each unit is cooled by a built-in fan with fan speed control, allowing operation in temperatures up to 60°C. In addition, the RSP-1000 offers flexible design features including output programming, active current sharing, remote ON/OFF control, auxiliary power, and more.

MEAN WELL RSP-1000-48 - 1008W 48V 21A
SINGLE OUTPUT ACTIVE PFC
H41 W295 D127mm ~2.0kg
