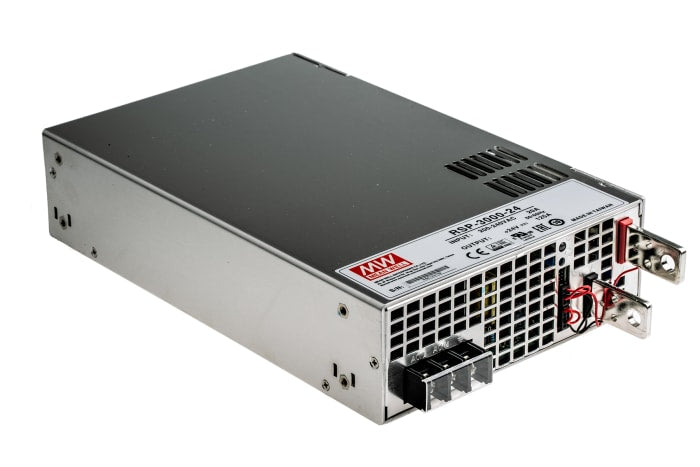

MEAN WELL Switching Power Supply, RSP-3000-24, 24V dc, 125A, 3kW, 1 Output, 180 → 264 V ac, 254 → 370 V

3000W Single Output Power Supply RSP-3000 Series

AC input 180 to 264Vac
AC input active surge current limiting
High efficiency up to 90%
Built-in active PFC function, PF>0.95
Protections: Short circuit, Overload, Over voltage, Over temperature, Fan alarm
Forced air cooling by built-in DC with fan speed control function
Output voltage can be trimmed between 20 and 110% of the rated output voltage
High power density 15.6W/in³
Current sharing up to 3 units
Alarm signal output (relay contact and TTL signal)
Built-in 12V 0.1A auxiliary output for remote control
Built-in remote ON-OFF control
Built-in remote sense function

Approvals

UL, TUV, CB.

Standards

EN60950-1, UL60950-1
