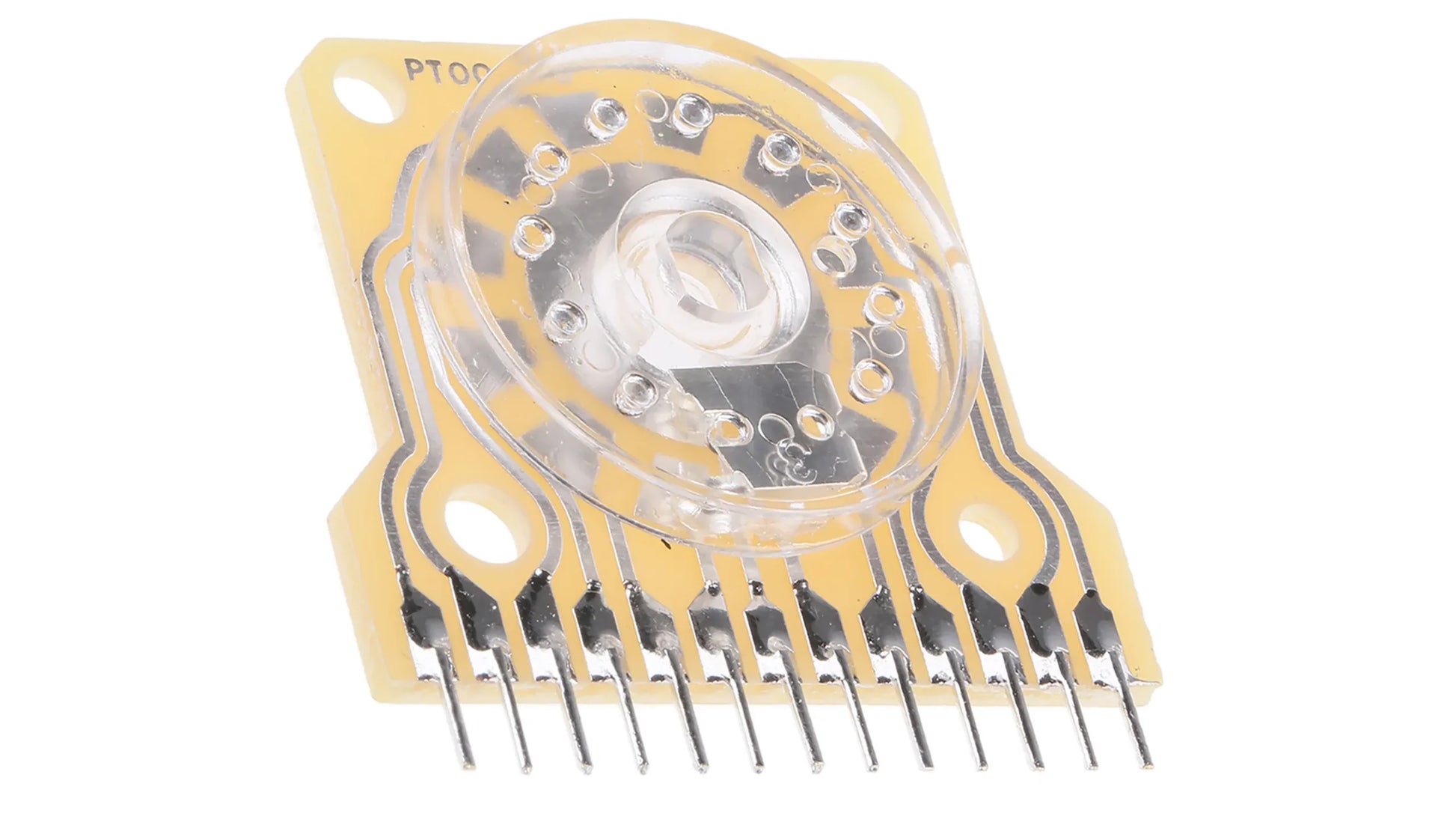

Lorlin 30° Rotary Switch Wafer 12-Positionx7pcs

Lorlin 30° Rotary Switch Wafer 12-Positionx7pcs

352-294

$ 110.00 SGD
$ 110.00 SGD
Jualan Habis dijual
Penghantaran dikira semasa pembayaran.

Request For Quote
Attribute
Value
Angle of Throw 30°
Number of Switch Positions 12
Voltage Rating 250 V ac, 250V dc
Number of Contacts 1
Contact Configuration SP
Contact Current Rating 500 mA
Contact Material Silver Plated Phosphor Bronze
Case Material PET
Height 31.4mm
Minimum Operating Temperature -30°C
Maximum Operating Temperature +85°C
Mounting Type PCB
Mechanical Life 10000Operations
Width 35.25mm
Terminal Type Through Hole
PCB Switch Kit A rotary switch mechanism with adjustable stop which will take up to a maximum of five extra wafers from the variety available A spacer kit is available to maintain a 6.35mm pitch between individual wafers Terminal spacing is on a 2.54mm pitch. The switch is supplied fitted with a non-interchangeable drive wafer Shaft diameter 6mm All wafers are break before make NoteThe 'spacers' contain a selection of items - qty 10 spacers, qty 2 front insulators, qty 1 rear driver shafts, qty 1 retaining strap, qty 2 tie rods, and qty 2 push-on fixings.
