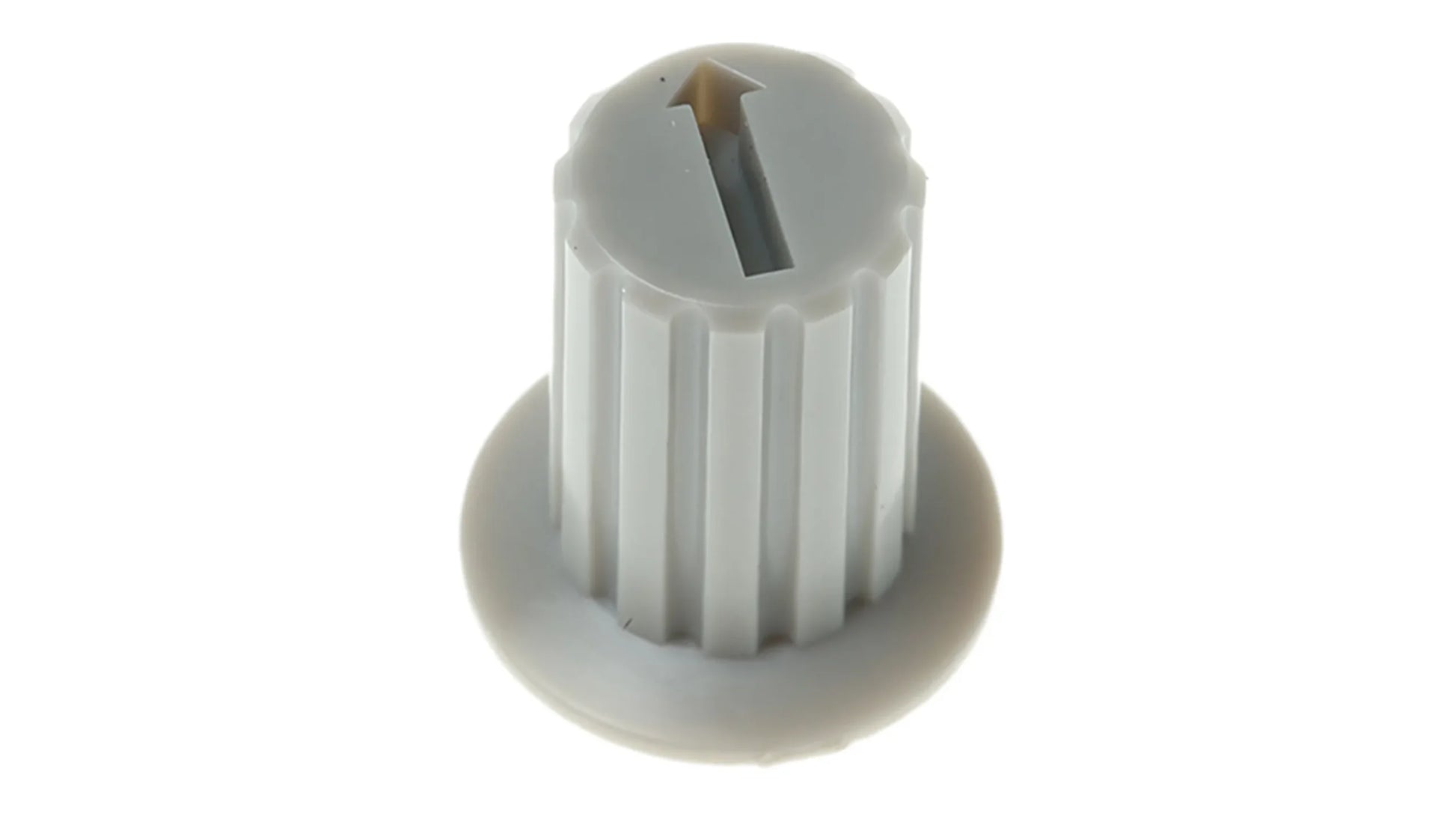

KNITTER-SWITCH Rotary Switch Cap for use with DRR Series, DRS Seriesx40pcs

The KNITTER-SWITCH Rotary Switch Cap provides a high-durability interface for subminiature rotary coded switching systems. This professional-grade accessory features a precision-molded button design. It acts as an essential asset for industrial control panels, telecommunications equipment, and medical devices. Technicians choose this reliable cap for its perfect fit and tactile operation. The modular design ensures seamless integration with the DRR and DRS 3000 and 4000 series. You can rely on the KNITTER-SWITCH Rotary Switch Cap for consistent, shop-quality results. It handles demanding electronic switching requirements with total precision.

Subminiature Design and High-Cycle Mechanical Life

The unit uses advanced polymer materials to maintain structural integrity through thousands of operations. This feature provides a significant durability boost for devices requiring frequent manual adjustment. Furthermore, the KNITTER-SWITCH Rotary Switch Cap is designed to survive a minimum of 20,000 mechanical operations. This design ensures that every switch cycle remains crisp and reliable for the operator. The subminiature profile facilitates high-density component placement on crowded PCB boards. Using this specialized hardware allows for a professional production cycle. The 2.54mm pin spacing ensures the underlying switch mounts perfectly on standard grids.

Industrial Reliability and PCB Integration Build

This unit provides maximum resilience against mechanical stress in transport and manufacturing zones. A reinforced snap-on interface prevents the button from detaching under heavy vibration. The KNITTER-SWITCH Rotary Switch Cap features a high insulation resistance of 1000 MΩ at 250V DC. This design reduces the risk of electrical interference during sensitive signal switching on the job site. Improved component longevity and worker efficiency benefit automation and facility maintenance teams. The cap remains effective for both through-hole and standard PCB mounting for universal shop utility. In summary, this accessory combines a potent mechanical life with a versatile, safety-oriented industrial design.

Key Features and Electronic Integration

• Subminiature Button Profile: This feature provides with a compact footprint for tight spaces.
• 20,000 Cycle Minimum Life: This safety feature ensures long-term operational reliability in critical control systems.
• DRR and DRS Series Compatibility: The design offers a perfect fit for 3000 and 4000 series rotary coded switches.
• High Insulation Resistance: The system maintains 1000 MΩ at 250V DC to protect delicate internal circuitry.
• Precision Through-Hole Mount: This feature allows the operator to maintain accurate alignment on 5.08mm row spacing.

Technical Specifications

Product Name	KNITTER-SWITCH Rotary Switch Cap
Accessory Type	Button / Cap
For Use With	DRR Series, DRS Series (3000 & 4000)
Mechanical Life	20,000 Operations (Minimum)
Insulation Resistance	1000 MΩ at 250 V DC
Mounting Type	Through Hole / PCB Mounting
Pin / Row Spacing	2.54 mm / 5.08 mm
Primary Application	Rotary Coded Switch Interface and Identification

Included in the Package:

• 1 x Professional Rotary Switch Cap Accessory
