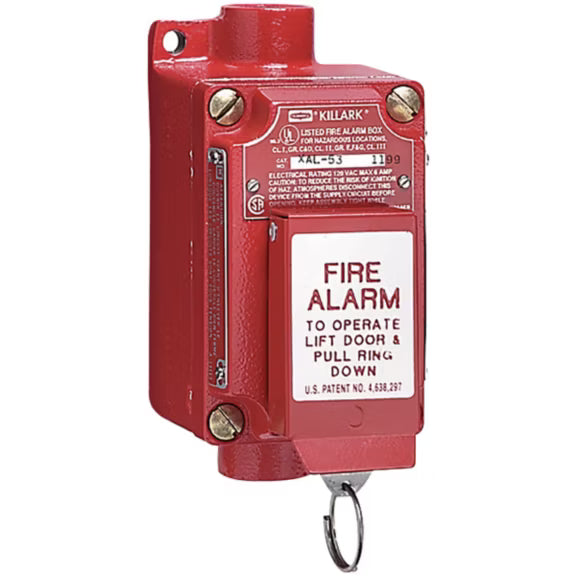

KILLARK XAL-53 Fire Alarm Pull Station Class I Div 1&2

Pull Ring fire alarm station : Datasheet KILLARK XAL-53, FIRE ALARM STATION, PULL RING TYPE CLASS 1 DIV 1&2, NEMA 7CD, 9EFG, 1NO/1NC CONTACT WITH 3/4" FEED THROUGH ENTRIES Features

• Enclosure made of copper-free aluminum alloy for durability and corrosion resistance
• Equipped with 3/4” NPT feed-through conduit openings for secure wiring connections
• Finished with red textured powder epoxy paint for high visibility in emergency situations
• Box and cover designed with high-visibility alarm station marking
• Includes bilingual nameplates as per CSA compliance requirements
• Provided with an internal ground screw for proper grounding and safety
• Alarm activates through a two-step safety mechanism: lift front cover and pull down ring
• Designed to prevent accidental or unintentional activation
• Suitable for industrial hazardous environments requiring reliable emergency signaling

Specifications – KILLARK XAL-53 Fire Alarm Station

• Brand: KILLARK
• Model: XAL-53
• Product Type: Fire Alarm Station / Pull Ring Type
• Operation Type: Manual pull-ring activation
• Hazardous Location Rating: Class I Division 1 & 2
• Enclosure Rating: NEMA 7CD, NEMA 9EFG
• Contact Configuration: 1NO / 1NC (One Normally Open / One Normally Closed)
• Wiring Entry: 3/4" feed-through entries
• Application: Industrial fire alarm and emergency warning system
• Installation Environment: Hazardous gas and dust environments
• Material: Heavy-duty industrial-grade metal enclosure
• Function: Emergency fire alarm activation and signal triggering
• Usage Areas: Oil & gas plants, chemical industries, refineries, offshore platforms, heavy industrial facilities
• Mounting Type: Surface mounted (industrial wall mounting)
• Design: Explosion-proof, corrosion-resistant construction
• Safety Compliance: Designed for hazardous area safety standards
