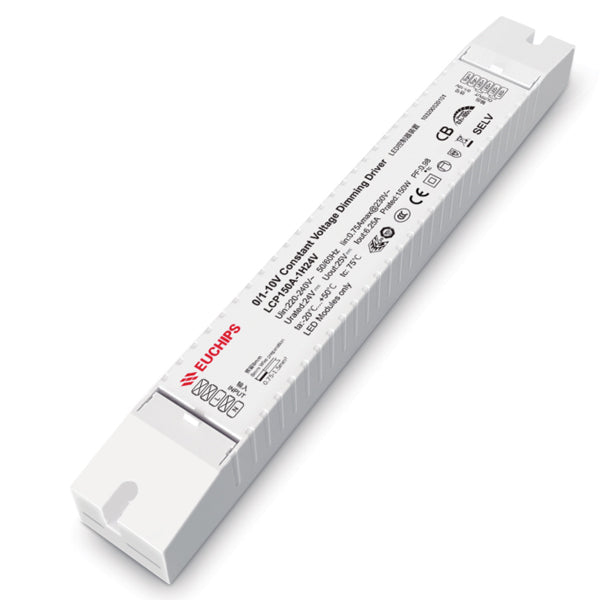

Euchips LCP150A-1H24V 150W 0/1-10V Constant Voltage Dimming Driverx10pcs

Lead time 1-2 weeks
Price based on moq 10pcs

The Euchips LCP150A-1H24V is a high-performance 150W constant-voltage LED dimming driver designed to provide stable 24V DC output for LED lighting applications. It supports 0/1–10V analog dimming, adjustable resistance, and PWM control, enabling smooth and flicker-free brightness adjustment from very low levels up to 100%.

With a 220–240VAC input, up to 92% efficiency, and a power factor of 0.98 at 230VAC/full load, the driver is suitable for energy-efficient indoor LED installations. Its single-channel output delivers up to 6.25A at 24VDC, making it suitable for LED strips and other constant-voltage luminaires.

Key Features

• Model: LCP150A-1H24V
• Output Power: 150W
• Output Voltage: 24V DC
• Maximum Output Current: 6.25A
• Input Voltage: 220–240VAC, 50/60Hz
• Dimming: 0/1–10V, adjustable resistance and PWM
• Dimming Range: 0.1–100%, with dim-to-off capability
• Smooth, flicker-free dimming
• Efficiency: Up to 92%
• Power Factor: 0.98 at 230VAC/full load
• Protection: Over-voltage, overload and short-circuit protection
• IP Rating: IP20
• Operating Temperature: −20°C to +50°C
• Lifetime: 50,000 hours at Tc 75°C
• Warranty: 5 years
• Dimensions: 295 × 40 × 32 mm
