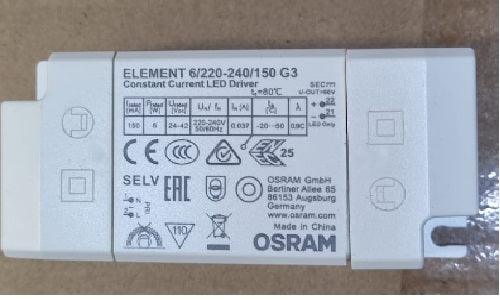

Osram ELEMENT 6/220-240/150 G3 ELEMENT G3 | Compact constant current LED driver – Non dimmable

Osram ELEMENT 6/220-240/150 G3 ELEMENT G3 | Compact constant current LED driver – Non dimmable

SKU SKU:4062172167390

Harga biasa $ 10.00 SGD
Harga biasa $ 12.00 SGD Harga jualan $ 10.00 SGD
Jualan Habis dijual
Penghantaran dikira semasa pembayaran.

Stok rendah: 7 tinggal

Request For Quote

Datasheet:

Description:

Left only 7pcs

Product family features:
- Fixed output (no dimming)
- Input voltage: 220 – 240 VAC
- Suitable for Class I/II luminaires
- Output current range 150-1050 mA
- Up to 30 000 h lifetime at tcmax = 80 °C Typ. Efficiency: from 82% to 90% depend on different wattage
- SELV
- Ambient temp range, ta: -20 °C to +50 °C

Product family benefits:
- Safety ensured by OSRAM (SELV)
- 3 years guarantee
- High quality of light with ripple current < 5%

Areas of application:
- Spot light and down light
- Panels
- Other Indoor LED luminaries

Electrical data:
Nominal input voltage : 220…240 V
Mains frequency :  50/60 Hz
Input voltage AC : 198…264 V
Current set : Fixed current
Total harmonic distortion : < 20 %
Power factor λ : 0.91C…0.95
Efficiency in  : full-load 81 % 1)
Device power loss : 1.4 W 2)
Protective conductor current : <0.7 mA
Inrush current : 7 A 3)
Max. ECG no. on circuit breaker : 10 A (B) 114
Max. ECG no. on circuit breaker : 16 A (B) 182
Surge capability : (L/N-Ground) 2 kV
Surge capability : (L-N) 1 kV
Nominal output voltage : 24…42 V
U-OUT (working voltage) : 60 V
Nominal output current : 150 mA
Output current tolerance : ±10 %
Output ripple current : (100 Hz) < 5 %
Output PSTLM : ≤1
Output SVM : ≤0.4
Nominal output power  : 3.6…6.3 W 4)
Maximum output power : 6.3 W
Galvanic isolation : SELV
