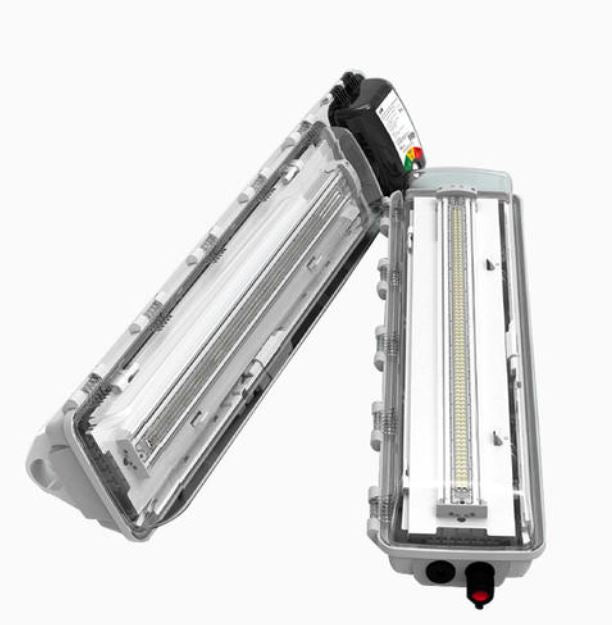

CZ Elite 1866 221-S – LED 2026 / WW – B5B – 17- KF + B2 + (D621 / 304 STAINLESS STEEL BRACKET) EMERGENCY TYPE
CZ Elite 1866 221-S – LED 2026 / WW – B5B – 17- KF + B2 + (D621 / 304 STAINLESS STEEL BRACKET) EMERGENCY TYPE
SKU SKU:CZ1866221-SLED2026WWB5B17KFB2D621
1866 2 X 28W IECEx CML 16.0116X Iss. 4 signed.pdf
Kongsi
Description:
The following conditions relate to safe installation and/or use of the equipment.
i. Due to the risk of static hazards of the CZ086 Series, CZ0264, and CZ186 Series
Luminaire Ranges, the equipment in these ranges shall only be cleaned with a damp
cloth.
ii. CZ186 models incorporating MU025xx or MU060xx drivers shall only be connected to
an electrical power supply which is fitted with a protective device which limits the
current to a maximum of 10A.
iii. The cable entries shall be made via suitably certified cable glands providing an ingress
protection of IP66. Any unused entries shall be closed with suitably certified blanking
plugs providing a degree of protection of IP66.
iv. CZ186 models contain a flameproof switch. The dimensions of the flameproof joints
differ from those of EN/IEC 60079-1 Table 2 and therefore shall not be repaired.
v. The power and inverter modules fitted inside the luminaire enclosure are supplied
permanently sealed and therefore no attempt must be made to open or repair them
