CST CS-810-T-S4 Solar Powered Low Intensity Double Aviation Obstruction Light Type B
CST CS-810-T-S4 Solar Powered Low Intensity Double Aviation Obstruction Light Type B
SKU:CS-810-T-S4
Tidak dapat memuatkan ketersediaan pengambilan
Kongsi

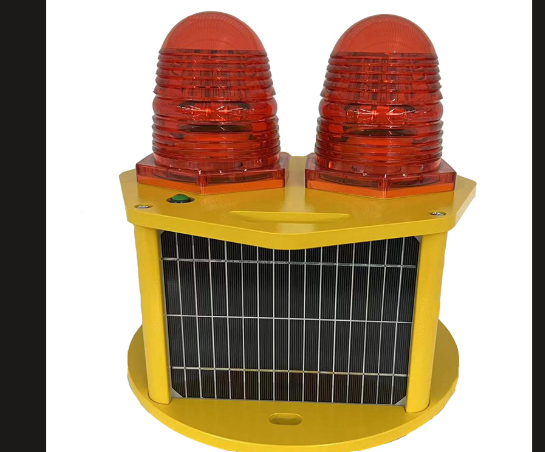

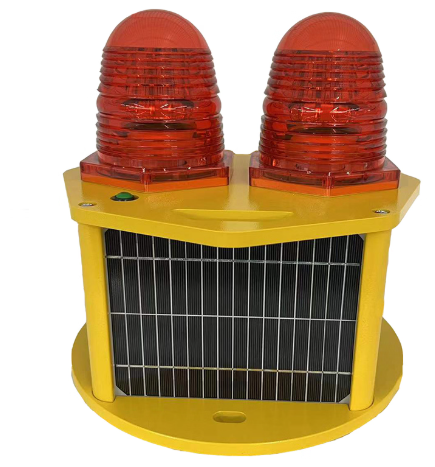

Solar Powered Low Intensity Double Aviation Obstruction Light Type B DC12V, red LED, steady burning mode, main-standby way, Mono solar panel 18V 16W, 12V 12Ah Lead-acid battery
The CST CS-810-T-S4 Solar Powered Low-Intensity Double Aviation Obstruction Light Type B is a solar-powered aviation warning light designed to provide reliable visual identification of structures that may present a hazard to aircraft. It is particularly suitable for locations where conventional electrical power or cabling is difficult to install, including telecommunication towers, electrical towers, high-rise structures, chimneys, high poles, tower cranes and wind turbines.
The unit uses red LED light sources with an effective intensity of greater than 32 cd, providing 360° horizontal coverage and approximately 10° vertical beam coverage. The double-light configuration provides main/standby operation for enhanced operational reliability. It can operate in steady-burning or flashing modes, depending on the configured application.
Key specifications:
| Parameter | Specification |
|---|---|
| Model | CST CS-810-T-S4 |
| Type | Low-Intensity Double Aviation Obstruction Light |
| Light Type | Type B |
| Light Source | Red LED |
| Effective Intensity | >32 cd |
| Beam Coverage | 360° horizontal / 10° vertical |
| Operating Mode | Steady / Flashing; Main-Standby |
| Power Supply | Solar, DC 12 V |
| Solar Panel | Monocrystalline |
| Battery | VRLA, 12 V 12 Ah |
| Autonomy | ≥5 days |
| Housing | Die-cast aluminum alloy |
| Lens | UV-stabilized polycarbonate |
| Protection | IP65 |
| Operating Temperature | -40°C to +55°C |
| Wind Load | 240 km/h |
| Overall Dimensions | 303 × 220 × 292 mm |
| Compliance | ICAO Annex 14 Vol. I; CAAC MH/T6012-2015 |
| Warranty | 2 years |
