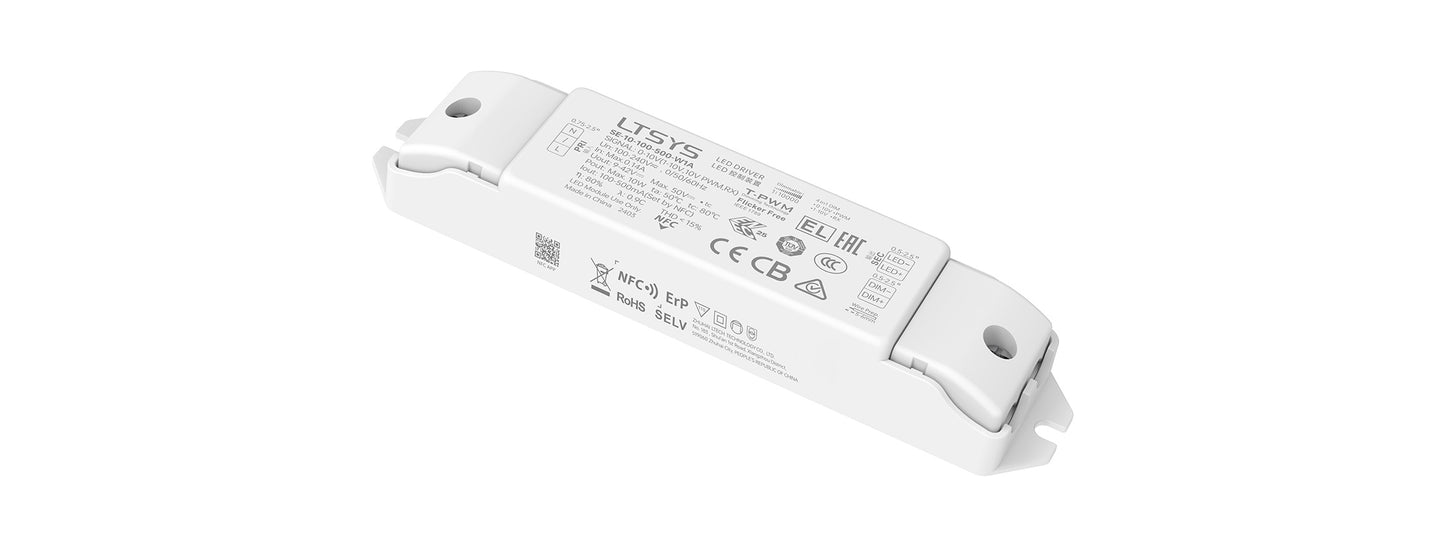

[China] LTECH W1A Series 0-10V Dimming NFC Constant Current LED Driver

[China] LTECH W1A Series 0-10V Dimming NFC Constant Current LED Driver

SE-10-100-500-W1A

$ 454.00 SGD
$ 495.00 SGD $ 454.00 SGD
Jualan Habis dijual
Penghantaran dikira semasa pembayaran.
Model No(No Of Pack)
Power
Output Current

Request For Quote

Delivery

Singapore

1-3 work days ( 90% of Shipments)

For items that are stocked outside Singapore, it takes 7 - 14 work days.

International

7-14 work days.

Pick FEDEX at checkout for reliable and Fast Deliveries.

Taxes

Singapore

GST Not Applicable - Prices displayed are final prices.

International

As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.

Lembaran data

cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895

We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !

** Ships From China, Lead Time 2-3 Weeks**

Description:

  • Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.
  • Ultra small, thin and lightweight, screwless end cap.
  • Change the output current, dimming mode and other parameters via the APP.
  • Adjustable output current with 1mA step.
  • Automatically recognize 0-10V and 1-10V input signal.
  • Ultra-low consumption of 0-10V ports < 0.05mA.
  • Soft-on and fade-in dimming function enhances your visual comfort.
  • T-PWM super deep dimming technology, 0.01% dimming depth.
  • The whole dimming process is flicker-free with high frequency exemption level.
  • Comply with the EU’s ErP Directive, networked standby<0.5W.
  • When there is no load, the output will be 0V to prevent damage to LEDs due to poor contact.
  • Overheat, over voltage, overload, short circuit protection and automatic recovery.
  • Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
  • Normal service life can reach 100,000 hours.
  • 5-year warranty (Rubycon capacitor).

Different Models:

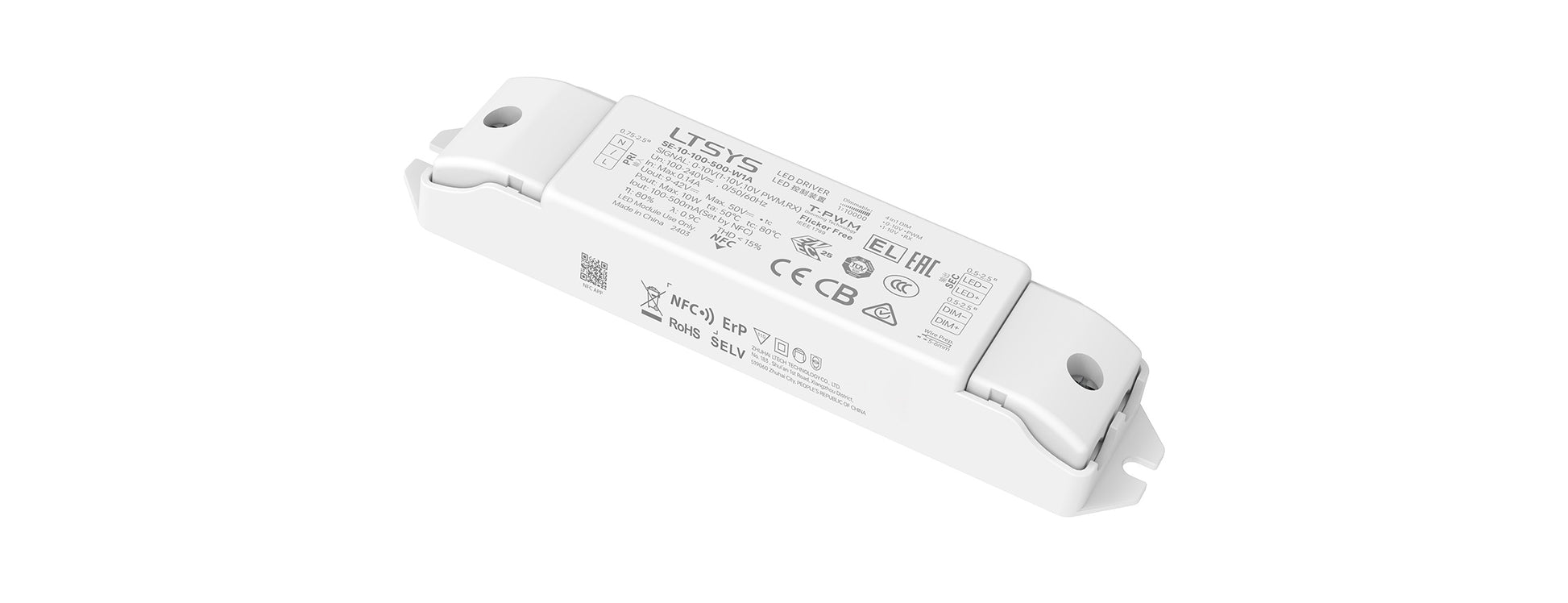

0-10V CC Dimmable Driver NFC full instruction programmable Rubycon Hot-selling (SE-10-100-500-W1A, SE-10-500-1000-W1A)

Certificates: CCC,SAA,ENEC,RCM,EAC,CB,ROHS,CE,欧盟ERP

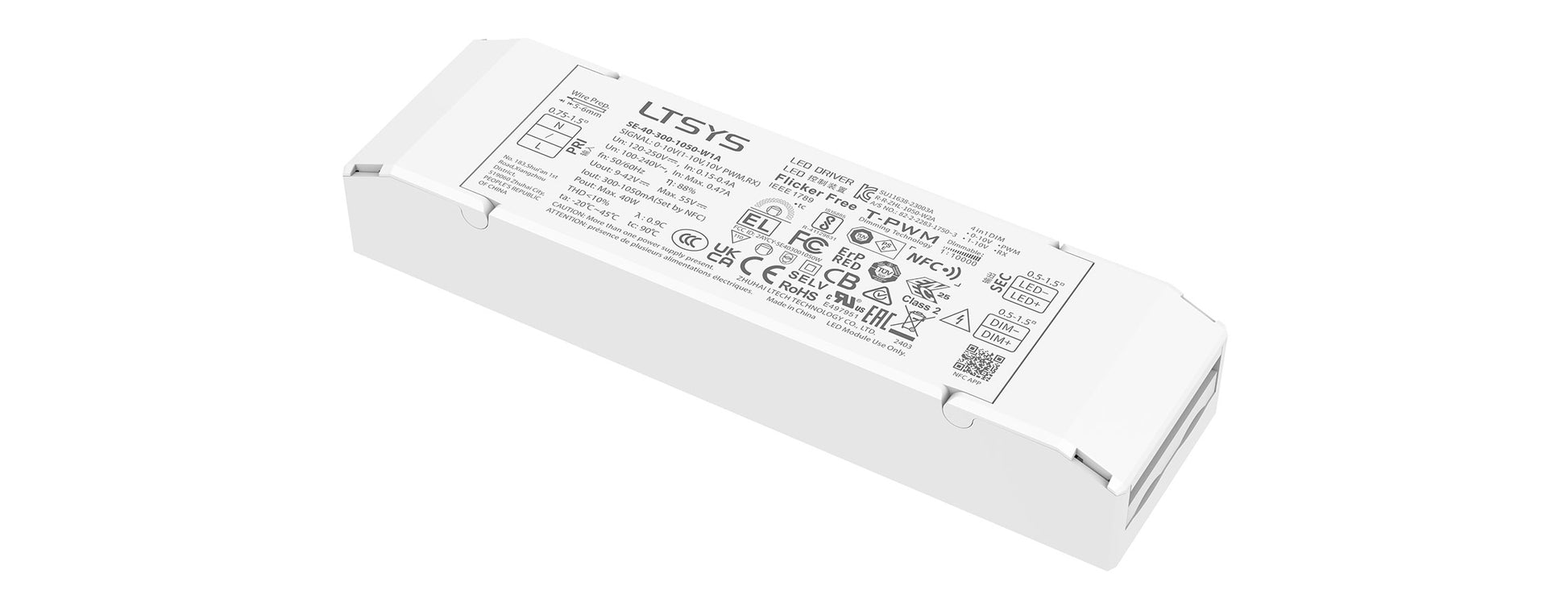

0-10V CC Dimmable Driver NFC full instruction programmable UL Certification Rubycon (SE-12-100-500-W1A, SE-20-100-700-W1A, SE-30-200-800-W1A, SE-40-300-1050-W1A)

Certificates:  CCC,UKCA,ENEC,TUV,CB, UL,CUL,FCC,EAC,KC,CE,SELV,RoHS,RCM,Class 2,PSE,EL,欧盟ERP,BIS
