[CHINA] LTECH TRIAC NFC Full Programmable Rubycon CC Dimmale LED Driver

[CHINA] LTECH TRIAC NFC Full Programmable Rubycon CC Dimmale LED Driver

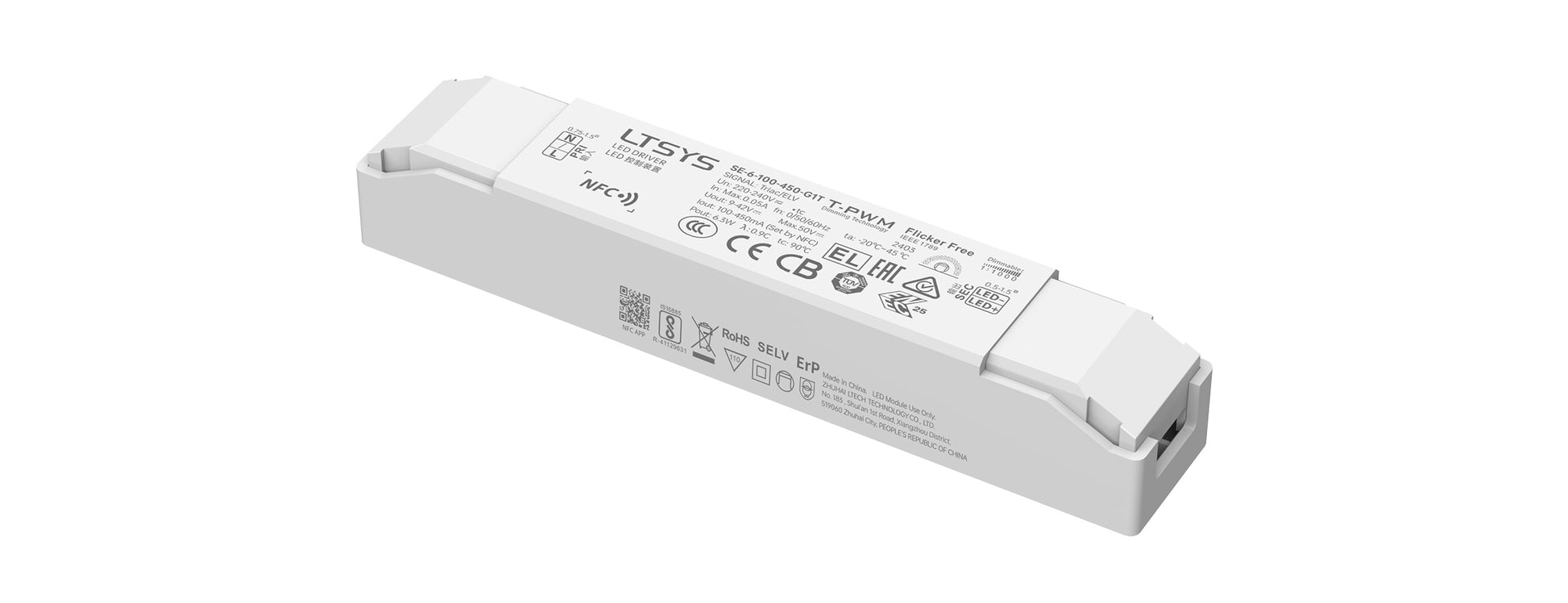

SE-6-100-450-G1T

$ 432.00 SGD
$ 471.00 SGD $ 432.00 SGD
Jualan Habis dijual
Penghantaran dikira semasa pembayaran.
Power
Output Current
Quantity

Request For Quote

"" Ships from China, Lead time 2-3 Weeks""

Description:

Warranty/Certificate: 5 year/CCC,CE,EU ERP,ROHS,UKCA


Datasheet for SE-8-100-400-G1T

Datasheet for SE-8-400-700-G1T

Datasheet for SE-6-100-450-G1T

Datasheet for SE-6-350-700-G1T

Intelligent LED Driver(Constant Current)

  • Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.
  • Ultra small, thin and lightweight, screwless end cap design.
  • The output current, minimum brightness value, power-on fading time
    can be changed through the mobile NFC APP, realize the driver data
    interaction function.
  • Leading edge (Triac), trailing edge (ELV) phase control dimming.
  • Adjustable output current with 1mA step.
  • Soft-on and fade-in dimming function enhances your visual comfort.
  • T-PWM super deep dimming technology, 0.1% dimming depth
  • The whole dimming process is flicker-free with high frequency exemption level.
  • Overheat, over voltage, overload, short circuit protection and automatic recovery.
  • Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
  • Normal service life can reach 100,000 hours.
  • 5-year warranty (Rubycon capacitor).

SE-6-100-450-G1T

Rubycon capacitor
Dimming Interface: Triac/ELV
DC Voltage Range: 220-240Vdc
AC Voltage Range: 220-240Vac
Input Voltage: 230Vac
Power Factor:  PF>0.9/230Vac (at full load)
Efficiency: 72%
Fluctuation Level: High frequency exemption assessment level.
Output Voltage: 9-42Vdc
Output Current: 100-450mA
Output Power: 0.9W~6.3W
Dimming Range: 0~100%, down to 0.01%
Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,ROHS
Warranty: 5 years

SE-6-350-700-G1T
Dimming Interface: Triac/ELV
DC Voltage Range: 220-240Vdc
AC Voltage Range: 220-240Vac
Input Voltage: 230Vac
Power Factor:  PF>0.9/230Vac (at full load)
Efficiency: 72%
Fluctuation Level: High frequency exemption assessment level.
Output Voltage: 2-18Vdc
Output Current: 350-700mA
Output Power: 0.7-6.3W
Dimming Range: 0~100%, down to 0.01%
Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,ROHS
Warranty: 5 years
