[CHINA] LTECH TRIAC 10W Constant Current IP20 Rubycon Dimmale LED Driverx 22 Pcs

[CHINA] LTECH TRIAC 10W Constant Current IP20 Rubycon Dimmale LED Driverx 22 Pcs

TD-10-100-450-G1T

URL Datasheet

URL Datasheet 2

$ 432.00 SGD
$ 471.00 SGD $ 432.00 SGD
Jualan Habis dijual
Penghantaran dikira semasa pembayaran.
Output Current

Request For Quote

Delivery

Singapore

1-3 work days ( 90% of Shipments)

For items that are stocked outside Singapore, it takes 7 - 14 work days.

International

7-14 work days.

Pick FEDEX at checkout for reliable and Fast Deliveries.

Taxes

Singapore

GST Not Applicable - Prices displayed are final prices.

International

As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.

Lembaran data

cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895

We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !

**Ships from China - 2 to 3 weeks lead time**

Description:

Warranty/Certificate: 5 year/CCC,CE,EU ERP,ROHS,CB,TUV,ENEC,UKCA,BIS,EAC

Intelligent LED Driver (Constant Current)

  • Small size and light weight. The housing is made from V0 flame retardant
    PC materials from SAMSUNG/COVESTRO.
  • Support Leading edge (Triac), Trailing edge (ELV).
  • With soft-on and fade-in dimming function, enhancing your visual comfort.
  • T-PWM™ dimming technology allows continuous and flicker-free images under
    high-speed photography.
  • The whole dimming process is flicker-free with high frequency exemption level.
  • Dimming from 0-100%, down to 0.1%.
  • Multiple current levels and wide voltage range. Suitable for different power of LEDs.
  • Innovative thermal management technology intelligently protects the life of the
    LED driver.
  • Overheat, over voltage , overload, short circuit protection and automatic recovery.
  • Up to 50,000-hour life time.
  • 5-year warranty (Rubycon capacitor).

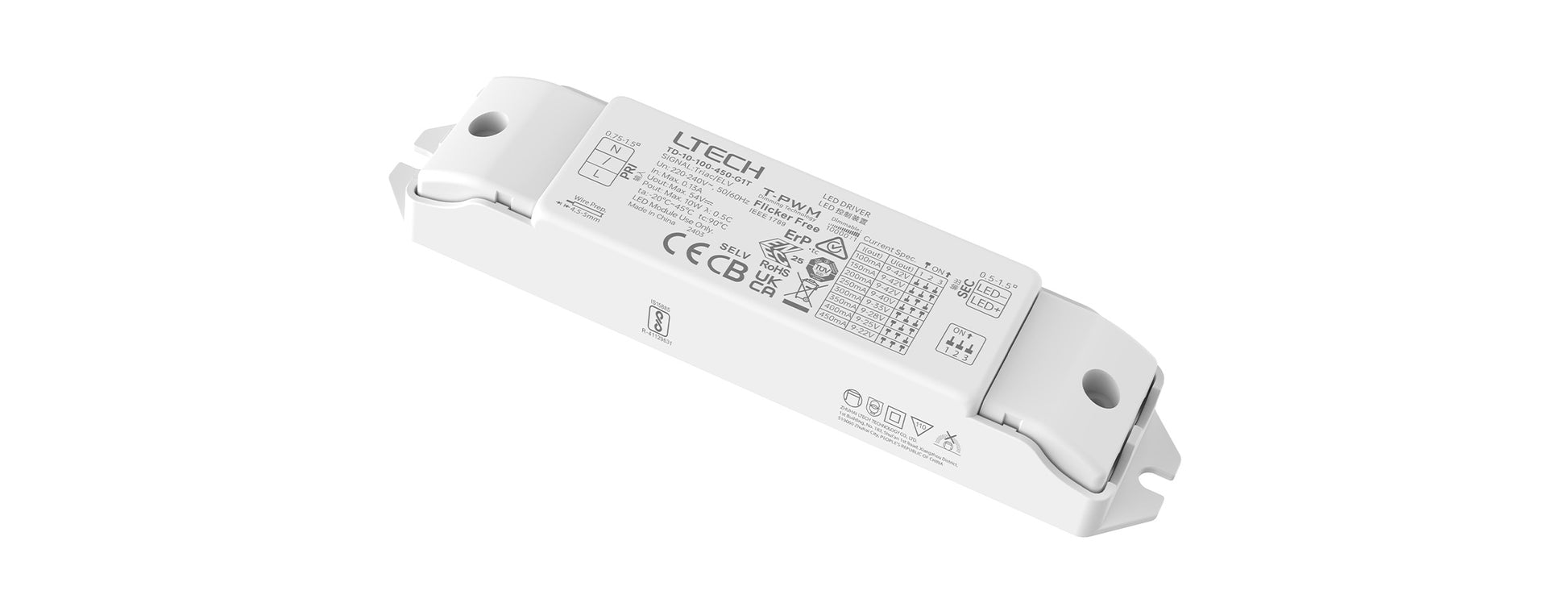

TD-10-100-450-G1T

Dimming Interface: Triac/ELV
DC Voltage: 200-280Vdc (Dimming is not available)
AC Voltage: 220-240Vac
Efficiency (Typ.): ＞78%@250mA
Strobe Level: High frequency exemption level
Output Voltage: 9-42Vdc
Output Current: 100-450mA
Output Power: 0.9-10W
Dimming Range: 0~100%, down to 0.1%
Certification: TUV,CE,KC,RCM,ENEC,CB,BIS,EAC,UKCA,ERP,ROHS
Warranty: 5 years


TD-10-350-700-G1T

Dimming Interface: Triac/ELV
DC Voltage: 200-280Vdc (Dimming is not available)
AC Voltage: 220-240Vac
Efficiency (Typ.): ＞78%@400mA
Strobe Level: High frequency exemption level
Output Voltage: 9-24Vdc
Output Current: 350-700mA
Output Power: 3.15-10W
Dimming Range: 0~100%, down to 0.1%
Certification: TUV,CE,KC,RCM,ENEC,CB,BIS,EAC,UKCA,ROHS
Warranty: 5 years
